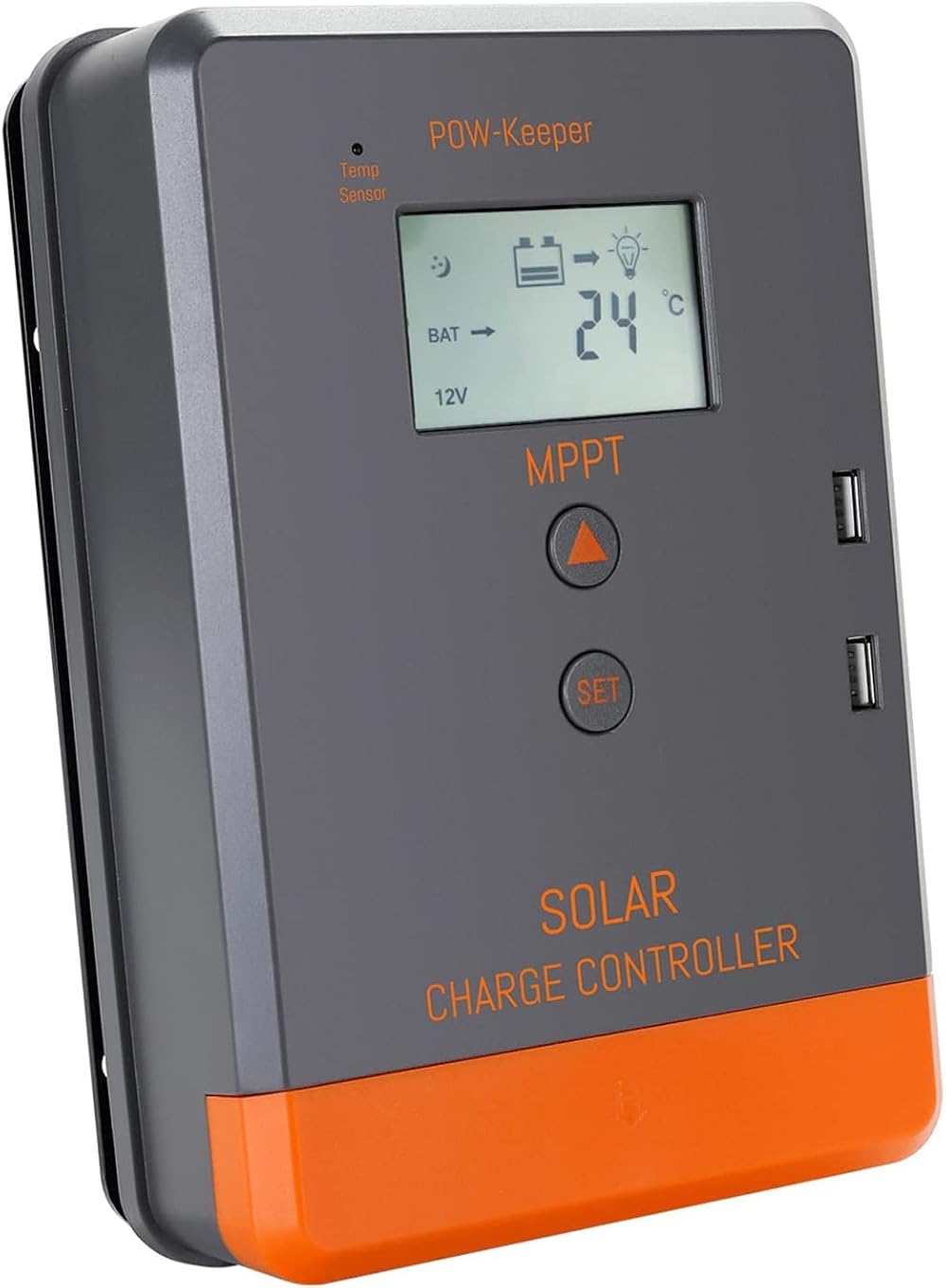

PowMr 30A MPPT Solar Charge Controller 12V 24V Auto LCD AGM Gel Lithium

PowMr MPPT Solar Charge Controller

This PowMr 30Amp MPPT solar charge controller is designed for efficient and intelligent charging of 12V and 24V battery systems. It automatically detects battery voltage and supports a wide range of battery types including AGM, Gel, Flooded, and Lithium batteries. The advanced Maximum Power Point Tracking (MPPT) technology ensures optimal power harvest from your solar panels.

Key Features

• MPPT Technology: Advanced Maximum Power Point Tracking for high tracking efficiency (no less than 99.5%).
• 30 Amp Charging: Rated charge current of 30A with a maximum charging conversion efficiency up to 97%.
• Auto Voltage Detection: Automatically recognizes 12V or 24V battery systems.
• Wide Solar Input: Supports solar panel input from 60W to 720W with a maximum solar panel VOC of 75V.
• Battery Compatibility: Supports AGM, Gel, Flooded, and Lithium batteries with preset charging parameters.
• LCD Display: Clear LCD screen provides real-time operating status.
• Multiple Load Control Modes: Includes 24Hours Working, Light Control, and Light+Time Control modes.
• Excellent Heat Dissipation: Features a robust design for effective heat management.

Specifications

• Brand: PowMr
• Model: MPPT Solar Charge Controller
• Rated Charge Current: 30A
• System Voltage: 12V/24V Auto
• Max Solar Panel Input Power: 720W (Max 75V VOC)
• Max Solar Panel VOC: 75V
• Battery Types Supported: AGM, Gel, Flooded, Lithium
• Tracking Efficiency: >= 99.5%
• Maximum Conversion Efficiency: 97%
• Load Control Modes: 24Hours Working, Light Control, Light+Time Control
