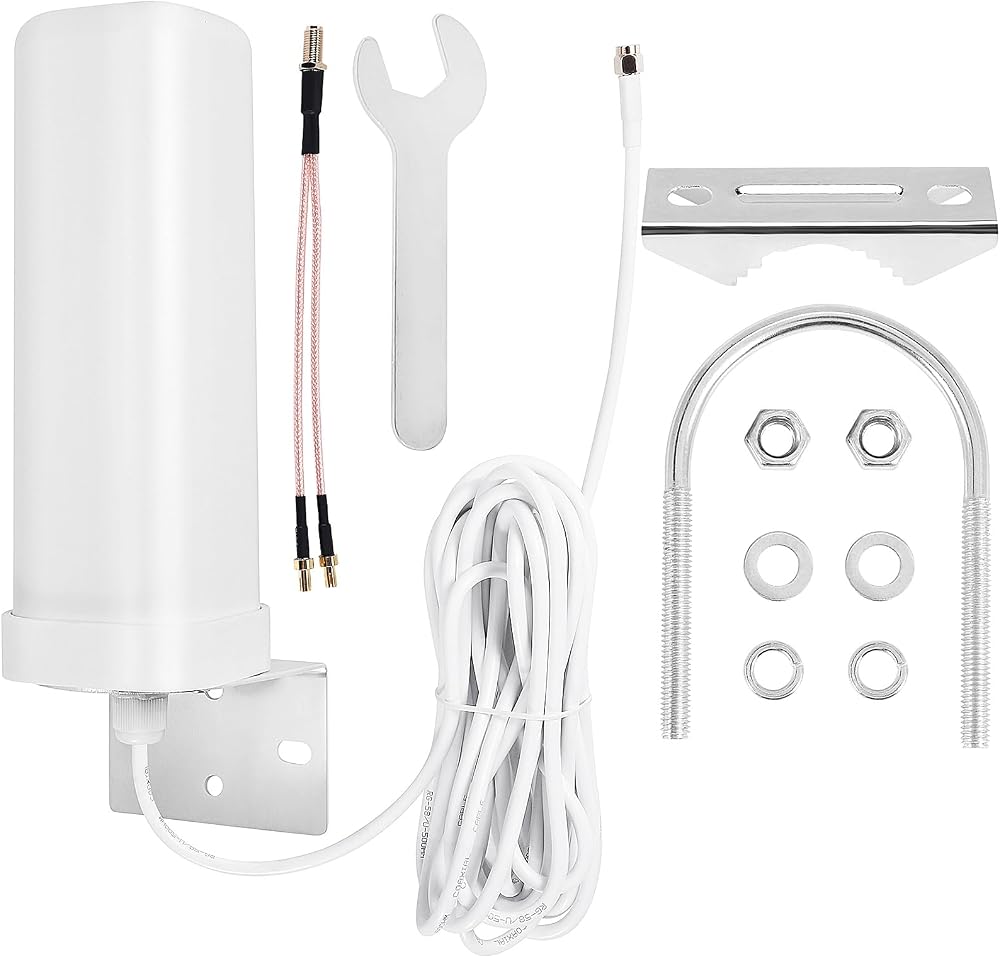

Yoiimiya 5G LTE Antenna External Omni 16-18dBi 698-3800MHz SMA Male Modem Router

Yoiimiya External 5G LTE Antenna

Boost your 3G, 4G, and 5G modem and router performance with this Yoiimiya external omni-directional antenna. Designed for outdoor use, it provides a significant signal enhancement for network cards.

Key Features

• Omni-directional radiation pattern
• 16-18dBi Gain for enhanced signal strength
• Wide 698-3800MHz Frequency Range
• Waterproof design for outdoor durability
• SMA Male Connector for broad compatibility
• Includes 0.5m RG174 Cable

Specifications

• Brand: Yoiimiya
• Frequency Range: 698-3800MHz
• VSWR: <2.0
• Gain: 16-18dBi
• Polarization: Vertical
• Radiation: Omnidirectional
• Max Power Input: 10W
• Input Impedance: 50 ohms
• Connector Type: SMA Male
• Cable Type: RG174
• Cable Length: 0.5 meters

Important Notes

• This antenna is specifically for LTE networks and cannot be used as a WiFi antenna.
• Ensure there are no obstructions between the antenna and the base station for optimal performance.
• The antenna should be installed in a vertical position.
• For weak signals, consider increasing the antenna's height to mitigate ground absorption of radio signals.
• Keep the antenna away from water sources, as moisture can affect radio signals.
• Internal metal components can interfere with signal transmission; ensure none are present.
• If no signal is detected after initial installation, remove and reposition the antenna.
• After installation, restart your router to confirm signal strength improvement and stability.
