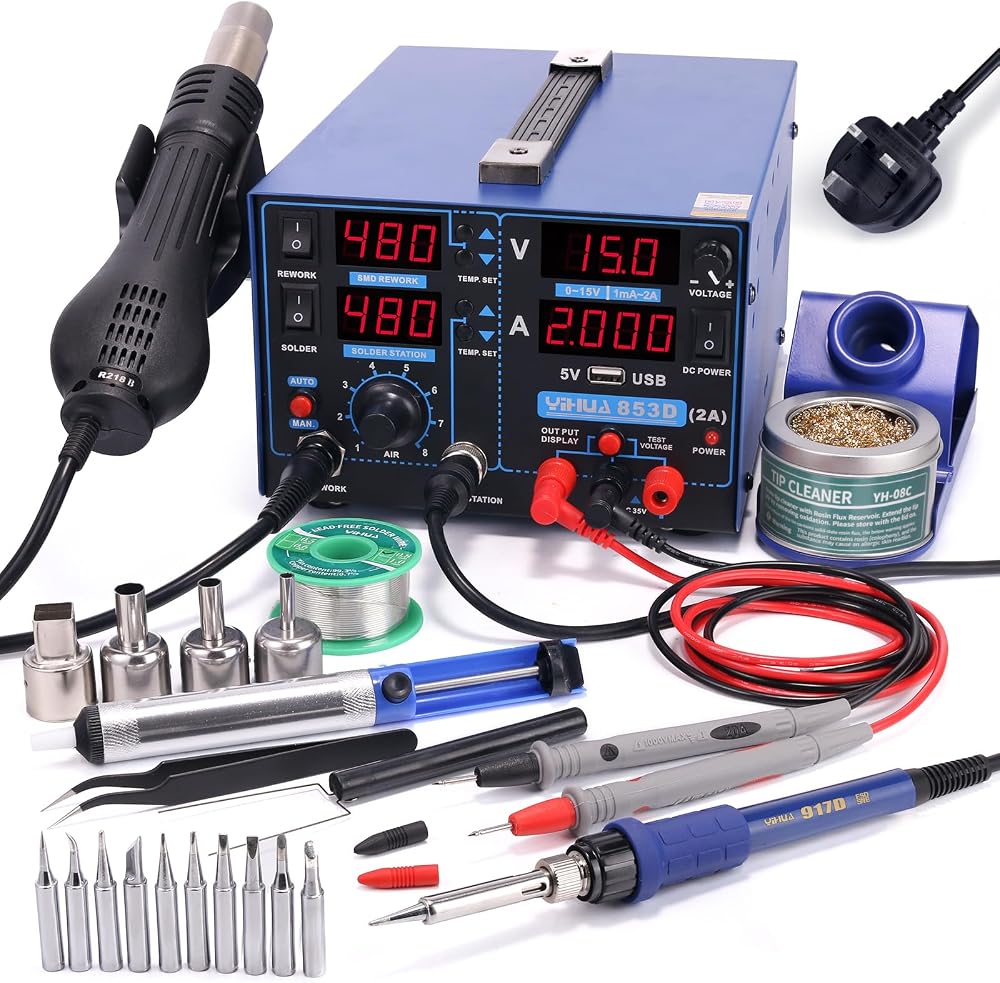

YIHUA 853D 3 in 1 SMD Hot Air Soldering Station UK Plug 0-15V 35V

Key Features

• 3 in 1 station: hot air rework, soldering station, and DC power supply in one compact unit; operate independently or simultaneously.
• Temperature ranges: hot air 100°C-480°C; soldering 200°C-480°C with individual PID stabilization.
• DC power supply: 0-15V output (Max 2 A); voltmeter tests up to 35V.
• Displays: four digital displays for temperature, voltage, and current values.
• Calibration & display modes: digital temperature calibration; C°/F° display mode for regional convenience.
• Assistive features: hot air automatic/manual mode, sleep mode, hot air fail-safe; energy saving and extended component life.
• Power & compatibility: rated for 230V AC with UK Type-G plug; includes YIHUA 900M tips compatibility.

Specifications

• Brand: YIHUA
• Model: 853D
• Hot air range: 100°C-480°C
• Soldering range: 200°C-480°C
• Power output: DC 0-15V, 2 A
• Voltmeter range: up to 35V
• Display: 4 x digital displays
• Plug type: UK plug
• Included: 900M series soldering iron tips available separately

The 3 in 1 station provides separate temperature control and measurement for precise rework of SOIC, CHIP, QFP, PLCC, BGA and other SMD packages. It is suitable for professional electronic repair and rework tasks with a compact footprint and reliable performance.
