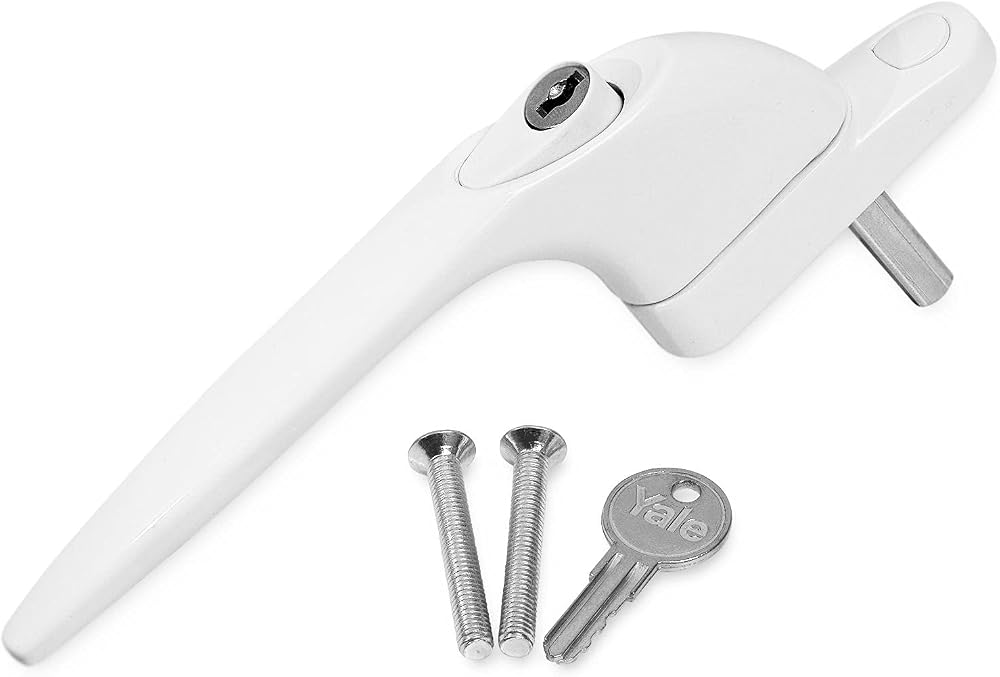

La-achu Yale uPVC Window Handle Inline Locking Espag White 20mm Spindle

Yale Quartus Universal Window Handle

The Quartus universal window handle is an elegant and stylish handle with a high-quality and ergonomic design. Made by Yale, a leading manufacturer in window and door hardware, this handle is suitable for all window espag and shoot bolt mechanisms.

Key Features

• Universal handle fits both left and right hand openings
• Secure handle
• Child safe handle requires button press
• Includes 2 fixing screws per handle
• Includes 1 key per handle
• Includes 1 screw cover cap per handle

Specifications

• Brand: La-achu
• Manufacturer: Yale
• Mechanism Type: Inline Espag / Shoot Bolt
• Screw Hole Centres: 43mm
• Spindle Width: 7mm Square
• Available Spindle Lengths: 10mm, 15mm, 20mm, 30mm, 40mm
• Colour: White

Measuring Your Handle

Screw Hole Fixing Centres: Most espag handles adhere to industry standards with 43mm screw hole centres. As long as your existing handle measures 43mm between the screw holes, this handle will fit, regardless of its style.

Handing: These handles are of the inline type, meaning they are suitable for replacing both left and right-hand opening window handles.

Spindle Length: To determine the correct spindle length, remove the two screws fixing your current handle to the window. Measure from the base of the handle to the tip of the spindle.

Spindle Width: While nearly all espag spindle widths are 7mm square, it is advisable to check before ordering, as some less common 8mm variations exist, primarily on timber windows.
