Y&H SDI Capture Card USB3.0 1080P 60FPS HD Video Recorder SDI Pass Through Live

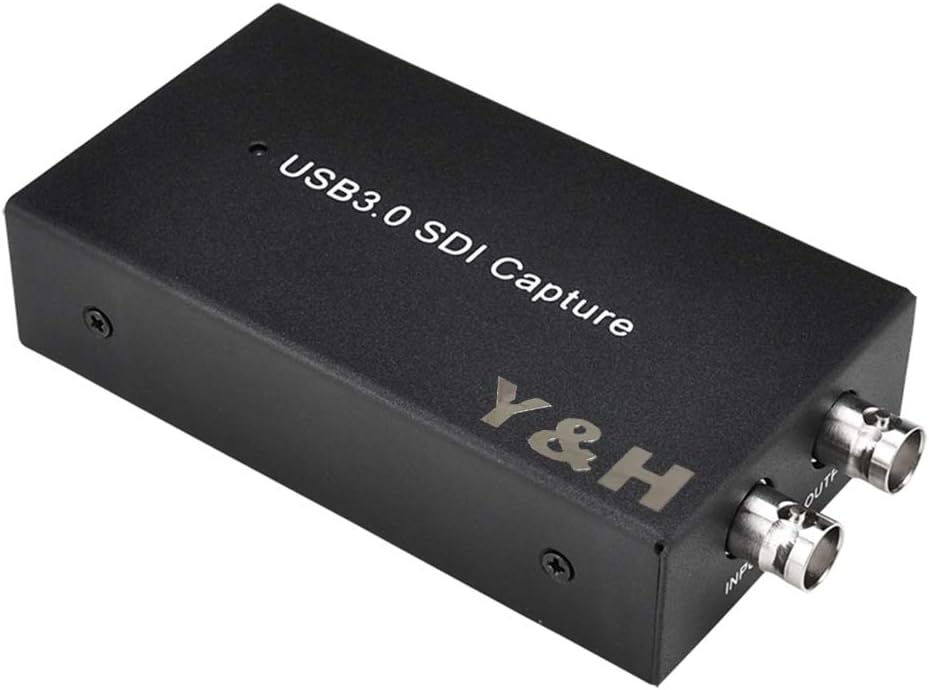

Y&H ezcap262 SDI Video Capture Card

Stream and record your HD SDI video sources in stunning 1080P at 60 frames per second with the Y&H ezcap262 SDI Capture Card. This plug-and-play device requires no driver installation, simply connect it to your PC (Windows, Mac, Linux) and use your preferred 3rd party software for capturing or live streaming. Enjoy seamless integration with your HD cameras, medical endoscopes, medical imaging devices, TVs, and gameplay consoles.

Key Features

• Capture Resolution: Up to 1080P 60FPS (dependent on video source)
• SDI Pass-Through: Record and stream simultaneously
• Plug and Play: No driver installation required
• Wide Compatibility: Works with Windows, macOS, and Linux
• Software Support: Compatible with OBS Studio, VLC, Wirecast, and more
• Interface: USB 3.0 for high-speed data transfer

Supported Resolutions

• 720 x 480 (60p)
• 720 x 576 (50p)
• 1280 x 720p (50p)
• 1280 x 720p (60p)
• 1920 x 1080 (50i)
• 1920 x 1080 (60i)
• 1920 x 1080 (24p)
• 1920 x 1080 (25p)
• 1920 x 1080 (30p)
• 1920 x 1080 (50p)
• 1920 x 1080 (60p)

System Requirements

• Operating Systems: Windows 7, 8, 10, OS X 10.9 or later, Linux
• CPU: PC: Intel Core i5-3400 + NVIDIA GT630, Notebook: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, Mac: i5 quad-core or above
• Graphics: VGA card supporting DirectX 10
• RAM: 4GB RAM
• Port: Powered USB 3.0 port (Intel chipset with native USB 3.0 host controller recommended)

Software and Development Interface Compatibility

• Software: OBS Studio, Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, QuickTime Broadcaster, QuickTime Player, Wirecast, vMix, Potplayer
• Development Interfaces: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux), OS X (QuickTime)

Package Contents

• 1 x SDI Capture Card
• 1 x USB 3.0 Cable
• 1 x English User Manual
