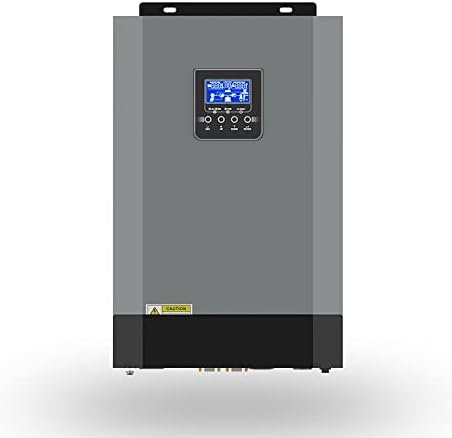

Y&H 5.5KW Solar Hybrid Inverter 48V MPPT 110A 500VDC Pure Sine Wave Work No

Key Features

• Pure Sine Wave Inverter: Provides clean power for sensitive electronics.
• Works Without Battery: Generates power directly from PV to supply loads, offering higher PV to AC efficiency.
• High Charger Current: Solar charger with a maximum charging current of 110A.
• Configurable Settings: Input voltage for home appliances and computers can be configured via LCD.
• Flexible Charging Priority: Configurable AC/solar charging priority and battery charging current.
• Protection Features: Overload, over-temperature, and short-circuit protection.
• Cold Start Function: Enables startup in low-temperature conditions.
• Smart Battery Charger: Designed for optimized battery performance.

Optional Energy Storage

We offer customizable energy storage batteries ranging from 1 kWh to 10 kWh. Battery capacity can be tailored to your specific load requirements and application scenarios to prevent under-capacity or excessive waste of power generation. Please reach out for technical support regarding energy storage solutions.

Product Specifications

• Brand: Y&H
• Model: 5.5KW Solar Hybrid Inverter
• System Voltage: 48V
• MPPT Controller: Yes
• Max Charge Current: 110A
• PV Input Voltage: 500VDC
• Output Voltage: 220VAC
• Waveform: Pure Sine Wave
