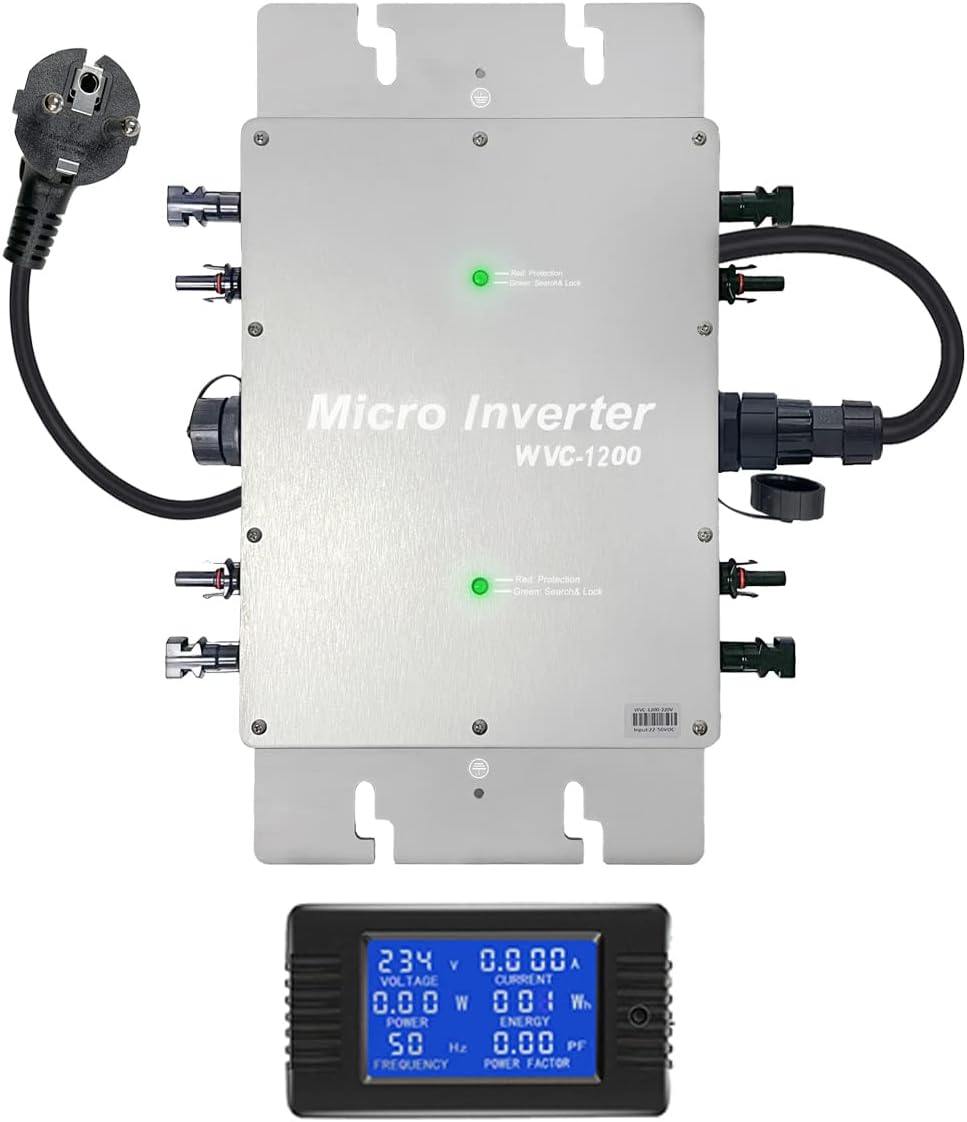

Y&H 1200W Solar Grid Tie Micro Inverter Waterproof IP65 MPPT for 30V-36V Panels

Y&H 1200W Solar Grid Tie Micro Inverter

This Y&H 1200W Solar Grid Tie Micro Inverter efficiently converts DC power from your solar panels into usable AC electricity for your home or small commercial space. Designed for single-phase applications, it offers enhanced safety and ease of installation compared to traditional string inverters.

Key Features

• Brand: Y&H
• Power Output: 1200W
• Waterproof Rating: IP65
• MPPT Technology: Yes
• DC Input Voltage: 28-50V
• AC Output Voltage: 180-260V
• Optimized for Solar Panels: 30V, 36V, 250W-300W (Vmp 30-39V; Voc 36-50V)
• Improved AC Wiring: Faster installation and reduced risk of miswiring.
• DC Input Connector: MC4 connector to prevent reverse polarity.
• Real-time Monitoring: AC digital meter displays voltage, current, active power, electrical energy, frequency, and power factor.
• Low DC Voltage Safety: Up to 50V DC minimizes fire and electric shock risks during installation and operation.
• Stackable Connection: Expand your system as needed.
• Protections: High precision phase detection, over/under voltage protection, over/under frequency protection, and islanding protection.
• Low Maintenance: Requires minimal upkeep, primarily occasional cleaning of solar panels.

Specifications

• Brand: Y&H
• Model: 1200W Micro Inverter
• MPPT Input Voltage Range: DC 28-50V
• Output Voltage: AC 180-260V
• Maximum DC Input Power per MC4 Branch: 300W
• Recommended Solar Panel Configuration: 4x 250W-300W solar panels (30V, 36V)
• Waterproof Rating: IP65
