Y&H 1000W Pure Sine Wave Hybrid Solar Inverter 12V DC 40A MPPT Charger

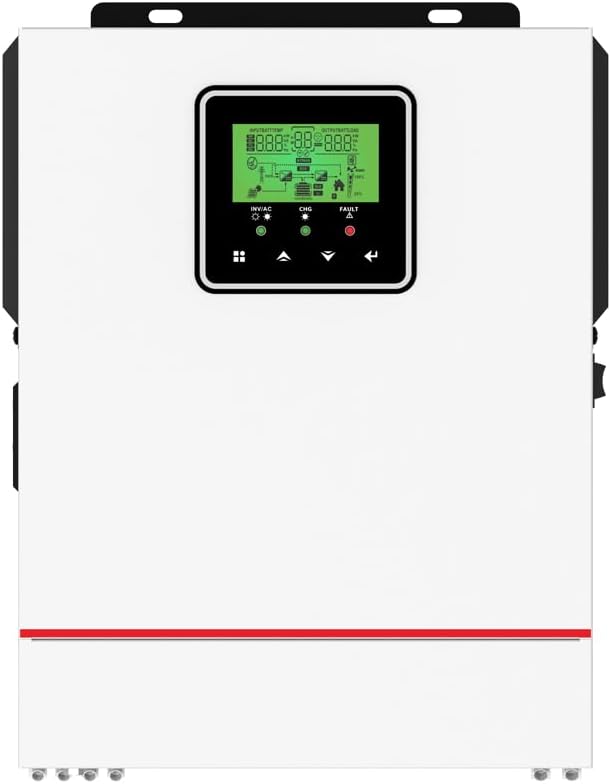

Y&H 1000W Pure Sine Wave Hybrid Solar Inverter

This all-in-one Y&H hybrid solar inverter charger provides a pure sine wave output for reliable power. It is designed for 12V Lead-Acid (Seal, AGM, Gel, Flooded) and Lithium batteries, making it suitable for various off-grid applications.

Key Features

• Pure Sine Wave Output: 1000W continuous power, 2000W surge capacity. Converts 12V DC to 220/230/240V AC (Single phase/A Hot Leg 230V Output).
• Integrated 40A MPPT Solar Charger: Efficiently charges your battery with solar power.
• Multiple Charging Modes: Selectable modes include Only Solar, Mains First, Solar First, and Mains & Solar hybrid charging.
• Dual Output Modes: Choose between Solar First and SBU Priority for uninterrupted power supply.
• Wide Input Voltage Range: Max. PV Input Power: 600W. Voltage range: 20-150Vdc. Max. PV Input VOC: 150V DC. Starting voltage >30V.
• Compatible with Mains/Generator: Automatically restarts when AC power recovers.
• User-Friendly Display: LCD screen and 3 LED indicators show system data and operating status.
• Configurable Settings: Adjust battery charging current, AC/Solar Charger priority, and Load Supply Priority via LCD.

Technical Specifications

• Brand: Y&H
• Model: 1000W Pure Sine Wave Hybrid Inverter
• Input Voltage: DC 12V
• Output Voltage: AC 230V
• Output Power: 1000W
• Surge Capacity: 2000W
• MPPT Charge Controller: 40A
• Max. PV Input Power: 600W
• PV Input Voltage Range: 20-150Vdc
• Max. PV Input VOC: 150V DC
• Nominal Input Frequency: 50/60Hz
• Recommended PV Cable Size: 12AWG
• Supported Batteries: 12V Lead-Acid (Seal, AGM, Gel, Flooded) and Lithium

Applications

Ideal for RVs, camping, boats, home emergency backup, and other off-grid power needs. Can power various AC loads like ovens, rice cookers, lamps, televisions, and fans. Please note the fan operates audibly when the inverter is running (50-70 db).
