WayinTop 2Set NRF24L01 PA LNA RF Module SMA Antenna 1100m Wireless Receiver

WayinTop Wireless Communication System Set

Set up a cost-effective wireless communication system with this complete WayinTop NRF24L01+PA+LNA RF module set. This kit includes transceiver modules, regulator modules, and boards, enabling reliable wireless communication between modules.

Key Features

• NRF24L01+PA+LNA Module: 2.4 GHz frequency, 1100m range, SMA antenna for extended connectivity.
• Voltage Regulator: Ensures stable power supply for the NRF24L01+ modules.
• AVR Board: A versatile board for implementing your wireless projects.
• Comprehensive Kit: Includes all necessary components for a functional wireless system.

Specifications

NRF24L01+ Module with SMA Antenna

• PA Gain: 20dB
• LNA Gain: 10dB
• Frequency: 2.4GHz~2.5GHz
• Range: 800+ meters line of sight
• Multi-frequency: 125 frequency
• Transmit Operating Current (Max): 115mA
• Receiving Operating Current (Max): 45mA
• Operating Voltage: 3V to 3.6V (3.3V recommended)

NRF24L01+ Voltage Regulator Module

• Pin Quantity: 8Pin
• On-board Chip: 3.3V regulator
• Input Voltage: 4.8V to 12V

AVR Board

• Architecture: AVR
• Operating Voltage: 5V
• Input Voltage: 7V to 12V
• SRAM: 2 KB
• Clock Frequency: 16 MHz
• Analog I/O Pins: 8
• EEPROM: 1 KB
• DC Current per I/O Pin: 40 mA
• Digital I/O Pins: 22
• PWM Output: 6
• Power Consumption: 19 mA

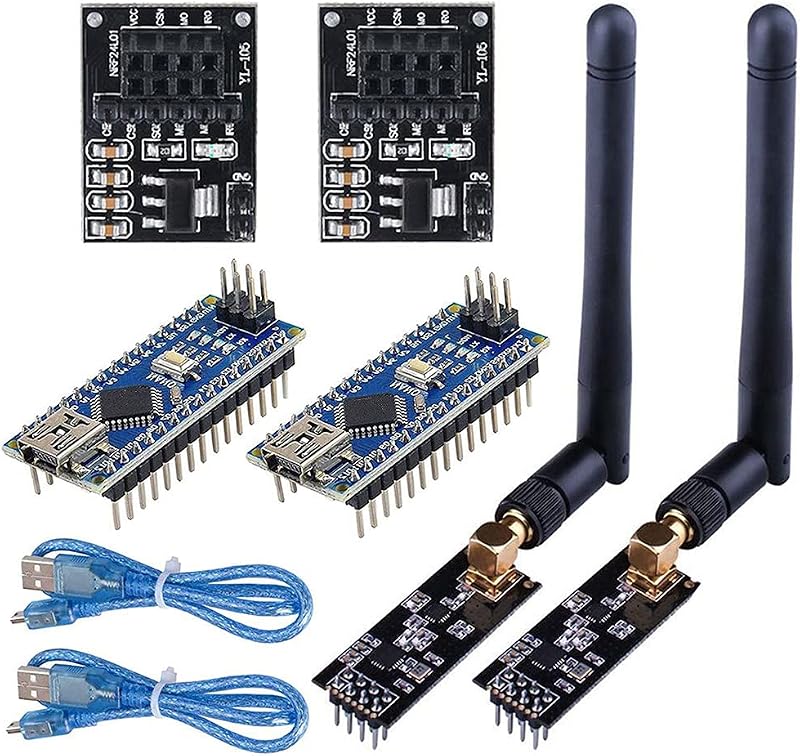

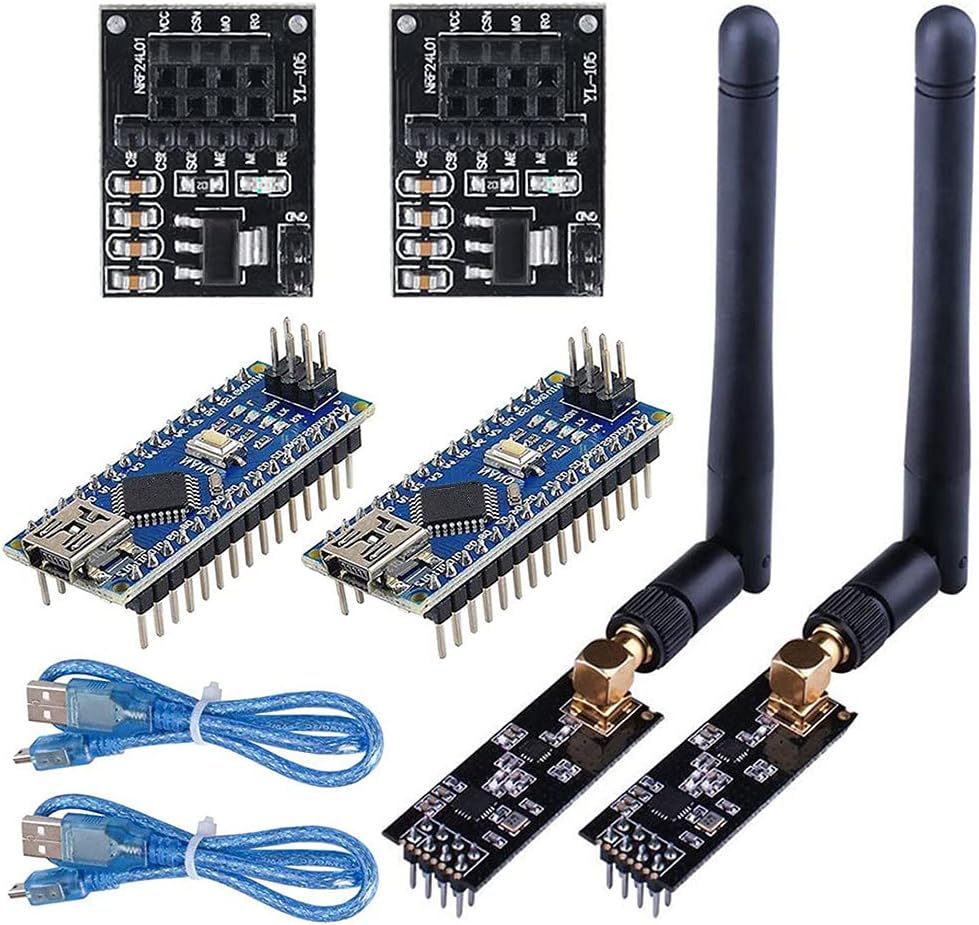

Package Included

• 2 x NRF24L01+PA+LNA Wireless Transceiver Module
• 2 x SMA Antenna (2.4G, 1100m)
• 2 x NRF24L01+ Voltage Regulator Module
• 2 x AVR Board
• 2 x 30CM USB Cable
