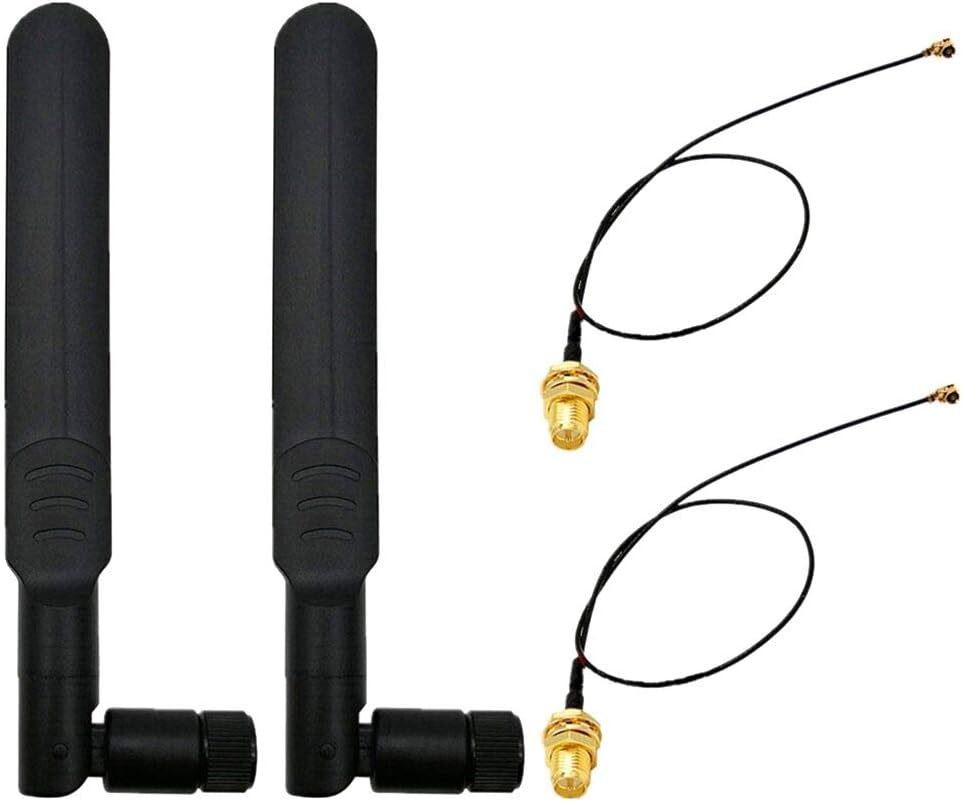

WayinTop 2X 8dBi WiFi Antenna Dual Band RP-SMA + 20cm IPEX Pigtail Cable Kit

Upgrade Your Wireless Network

Boost your router, repeater, or desktop PC's wireless performance with this 2-set WayinTop kit. Enhance signal strength and extend range for seamless connectivity.

Versatile Applications

• Ideal for upgrading routers, repeaters, and range extenders.
• Improve performance for desktop computers and Mini ITX PCI cards.
• Enhance transmission (TX) and reception (RX) range for FPV drones and UAVs.
• Upgrade PS4 mod builds for better downloads, controller connection, and online gaming.

Important Compatibility Note

Attention: This IPEX cable is compatible with Mini PCI cards only. It is not compatible with M.2 NGFF interfaces. IPEX has 5 types (MHF/MHF2/MHF3/MHF4/MHF5); this item is MHF.

Specifications

8dBi Dual Band Antenna:

• Gain: 8dBi
• V.S.W.R.: ≤ 1.5
• Radiation: Omnidirectional
• Input Impedance: 50Ω
• Maximum Input Power: 50W
• Frequency Range: 2400-2500 MHz & 5150-5850 MHz
• Connector Type: RP-SMA Male (Bore)
• Adjustable Angle: 90°, 135°, 180°
• Dimensions: 160 mm (unfolded) x 25 mm

IPEX WiFi to RP-SMA Pigtail Cable:

• Length: 20 cm
• Impedance: 50Ω
• Connector Type: U.FL/IPEX (MHF) to RP-SMA Female (Pin)
• Compatibility: 802.11a, 802.11b, 802.11g, 802.11n
• Applications: Mobile phones, antennas, WLAN, mini PCI, Bluetooth, PDA, GPS, drones, transmitters, electronic measuring devices.

Package Includes:

• 2 x 8dBi Dual-Band Antennas
• 2 x 20cm IPEX to RP-SMA Pigtail WiFi Cables
