VSDISPLAY 10.4" 1024x768 IPS LCD Screen USB C LVDS Controller Board Gaming

VSDISPLAY 10.4 Inch Industrial Replacement Display / Retro Gaming Monitor

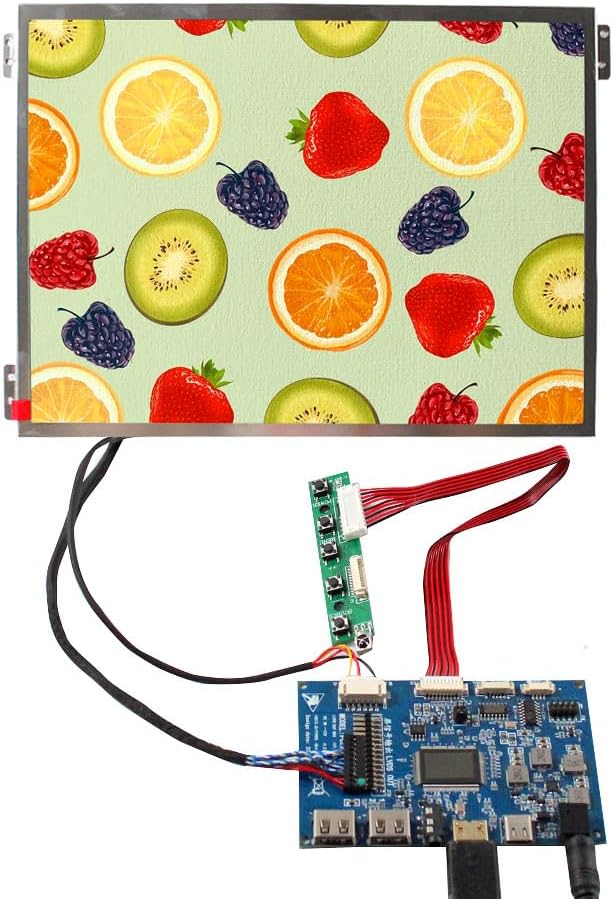

This VSDISPLAY kit provides a 10.4 inch IPS LCD screen with a 1024x768 resolution and a versatile USB C / USB LVDS controller board, ideal for industrial replacements or retro gaming projects. The screen features wide viewing angles and a bright display.

LCD Controller Board Features

• Input Power: 12Vdc 2A
• Standby Mode: Activates when no signal is detected, 2x2W standby power.
• Video Input: 1.4 USB C, 2x USB (for keyboard/mouse)
• Audio Input: Type-C
• Audio Output: Speaker Connector
• OSD Menu: Controls for brightness, contrast, auto settings, language, and more.
• Language Support: English, French, German, Spanish, Italian, and others.
• Board Size: 99.5mm x 65.8mm x 11mm

10.4" VS104T-004A LCD Screen Specifications

• Model: VS104T-004A
• Replacement for: G104XVN01.0, G104X1-L03
• Display Mode: IPS Pro, Normally Black, Transmissive
• Resolution: 1024 x 768
• Outline Dimensions: 227.00mm x 175.80mm x 7mm
• Display Area: 210.43mm x 157.824mm
• Brightness: 600 cd/m² (Typical)
• Contrast Ratio: 1000:1 (Typical)
• Viewing Angle: 80/80/80/80 (Typical) (CR≥10) [Left / Right / Up / Down]
• Interface: LVDS (1 channel, 8-bit), 30 pin connector
• Backlight: WLED
• Input Voltage: 3.3V (Typical)

Packing List

• 1 x USB C USB LCD Controller Board (VS-TY2660H-V862)
• 1 x 10.4 inch LCD Screen (VS104T-004, 1024x768)
• 1 x LVDS Cable
• 1 x Backlight Cable
• 1 x Keyboard with Cable
