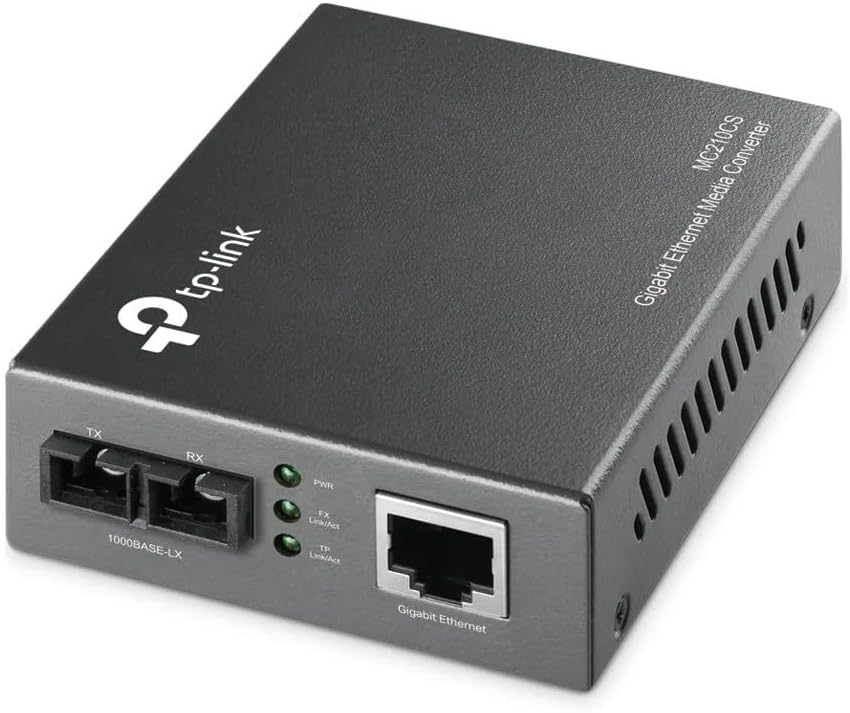

TP-Link MC210CS Gigabit Media Converter 1000Base-LX Fiber to Ethernet SC 20km

TP-Link MC210CS Gigabit Media Converter

This TP-Link MC210CS media converter provides a seamless solution for extending high-speed networks over long distances. It converts 1000Base-LX single-mode fiber optic signals to 10/100/1000Mbps RJ45 Ethernet, and vice versa, maintaining full gigabit speed.

Key Features

• Gigabit Fiber to Ethernet Conversion: Converts 1000Base-LX fibre to 10/100/1000Mbps RJ45 Ethernet (and vice versa) at full gigabit speed.
• Long-Distance Transmission: Supports single-mode fibre transmission up to 20km using a 1310nm wavelength.
• Plug & Play Operation: Features auto MDI/MDIX and auto-negotiation for half/full duplex modes, ensuring easy setup without manual configuration.
• Flexible Deployment: Can be used as a standalone unit or mounted in a TP-Link MC1400 chassis for centralized network management.
• Standards Compliant: Complies with IEEE 802.3ab and 802.3z standards.
• Low Power Consumption: Consumes only 1.8W.

Specifications

• Brand: TP-Link
• Model: MC210CS
• Ethernet Standard: IEEE 802.3ab/802.3z
• Fiber Port Type: SC
• Fiber Wavelength: 1310nm
• Fiber Type: Single-mode
• Max Transmission Distance: Up to 20km
• Ethernet Speed: 10/100/1000Mbps
• Features: Auto-Negotiation, Auto MDI/MDIX, Plug & Play
• Power Consumption: 1.8W

The TP-Link MC210CS is designed for reliable performance and continuous operation in various network environments, including campuses, warehouses, and inter-building connections.
