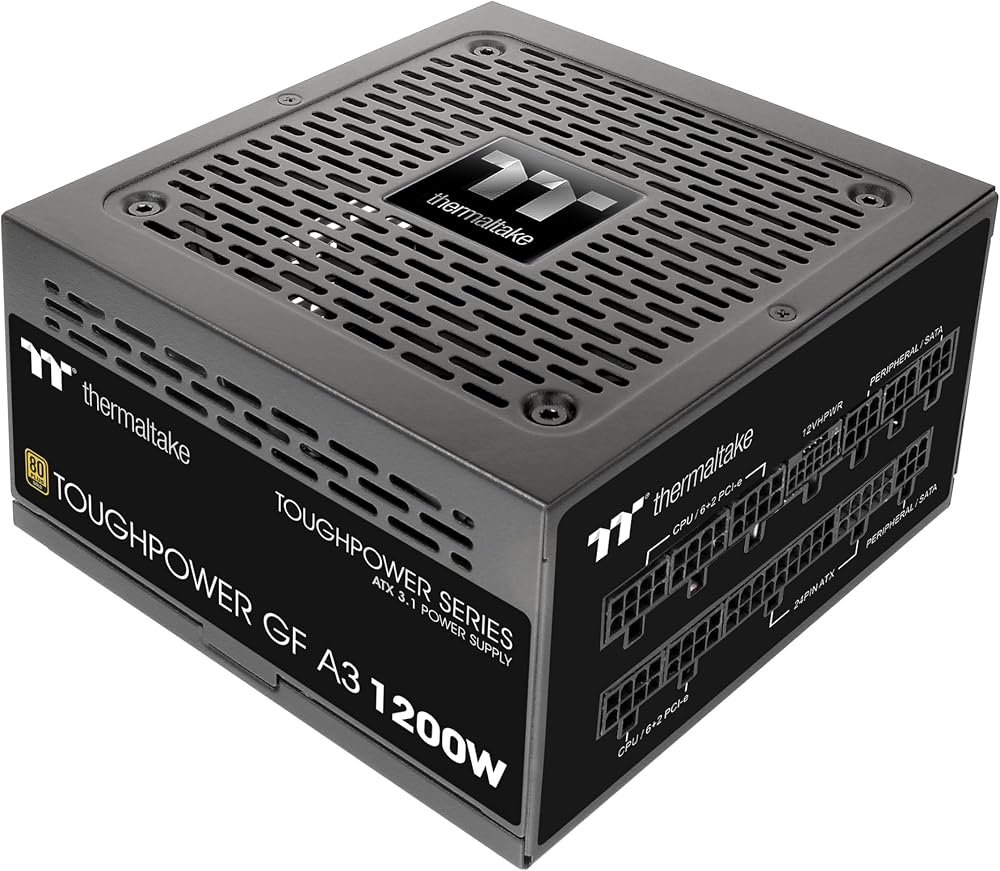

Thermaltake Toughpower GF A3 1200W ATX 3.0 PCIe 5.0 80+ Gold PSU RTX 40 Series

The Thermaltake Toughpower GF A3 1200W Power Supply Unit (PSU) is engineered for powerful and stable performance, natively supporting next-generation GPUs. This unit is designed with ATX 3.0 and PCIe 5.0 standards, ensuring compatibility and robust power delivery for high-end systems, including NVIDIA RTX 40 Series graphics cards.

Key Features

• 1200W Max Output Capacity: Provides ample power for high-performance computing systems.
• ATX 3.0 / PCI-E 5.0 Standards: Fully compliant with the latest power supply design guidelines for optimal compatibility.
• Native 16-Pin (12VHPWR) PCIe Connector: Delivers up to 600W for PCIe 5.0 graphics cards, ideal for NVIDIA RTX 40 Series GPUs.
• 80 PLUS Gold Certified: Ensures high power efficiency and reduced heat generation.
• SLI/Crossfire Ready: Supports multiple GPU configurations for enhanced graphics performance.
• Active Power Factor Correction (PFC): Improves power efficiency and stability.
• 12cm Fluid Dynamic Bearing (FDB) Fan: Provides efficient and quiet cooling.
• Compact Dimensions: Measures 150mm(W) x 86mm(H) x 140mm(D) for versatile case compatibility.
• Long-Term Reliability: Backed by a 10-year manufacturer warranty.

Specifications

• P/N: PS-TPD-1200FNFAGU-L
• Model: TTP-1200AH2FLG
• Max. Output Capacity: 1200W
• Color: Black
• Dimensions (W/H/D): 150mm x 86mm x 140mm
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-150 msec
• Hold Up Time: > 17msec
• Input Current: 20A-8A
• Input Frequency Range: 50Hz/60Hz
• Input Voltage: 100-240V～
• Operating Temperature: 5°C to +45°C
• Operating Humidity: 20% to 85%, non-condensing
• Storage Temperature: -40°C to +55°C
• Storage Humidity: 10% to 95%, non-condensing
• Cooling System: 12cm FDB Fan
• Efficiency: 80 PLUS Gold certified (at 115Vac input)
• MTBF: 100,000 hrs minimum
• Safety Approval: FCC/ICES/CB/cTUVus
• PCI-E 6+2PIN Connectors: 5
• PCIe 12+4PIN (12VHPWR) Connectors: 1 (600W)
