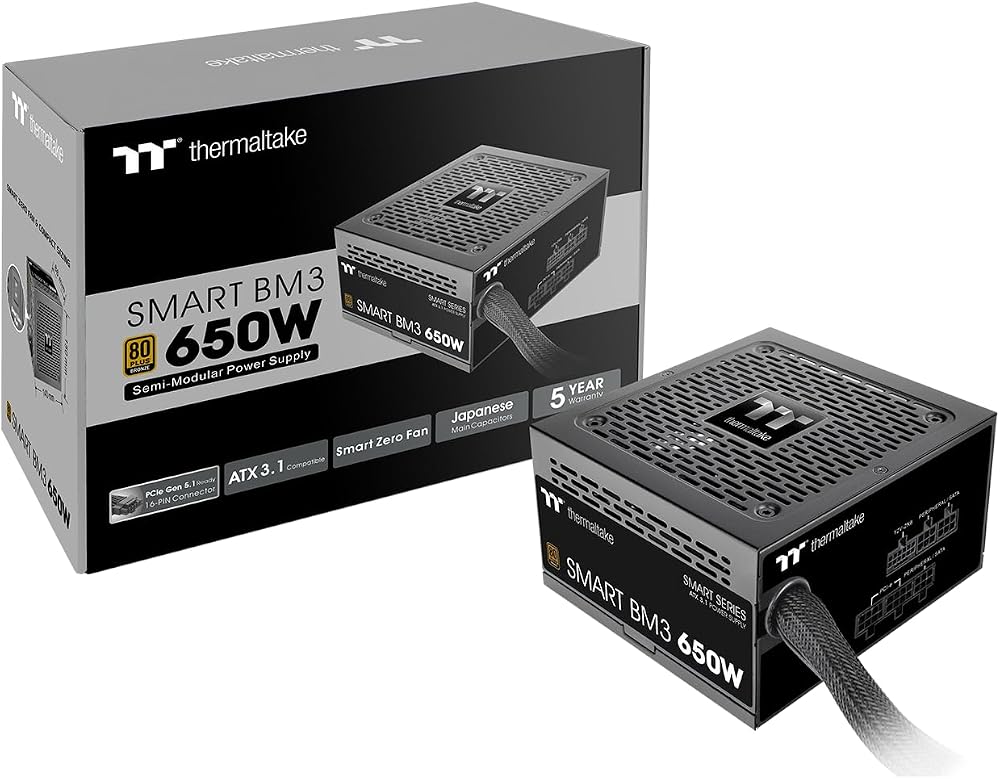

Thermaltake Smart BM3 650W 80 Plus Bronze ATX 3.1 PCIe 5 Semi-Modular PSU

The Thermaltake Smart BM3 650W Power Supply Unit (PSU) is 80 PLUS Bronze certified and features a semi-modular cable design, built to meet ATX 3.1 standards. It comes equipped with one PCIe Gen 5 (12V-2x6) connector to support modern graphics cards. With a 5-year manufacturer warranty, the Smart BM3 series provides current features for users seeking value and performance.

This PSU incorporates a 120mm Fluid Dynamic Bearing (FDB) fan designed for efficient airflow. The Smart Zero Fan function ensures the fan remains off until the load exceeds 20% of the power supply's capacity, helping to minimize operational noise. Durability is enhanced by the inclusion of high-quality 105°C Japanese main electrolytic capacitors.

Key Features

• 650W power output
• 80 PLUS Bronze certified for efficiency
• ATX 3.1 standard compliant
• PCIe Gen 5 (12V-2x6) connector included
• Semi-modular cable management
• 120mm FDB Fan for cooling
• Smart Zero Fan function for quiet operation
• High-quality 105°C Japanese main electrolytic capacitor
• 5-year manufacturer warranty
• P/N: PS-SPD-0650MNFABU-3
• MODEL: SPD-650AH2CLB

Detailed Specifications

• WATTS: 650W
• MAX OUTPUT CAPACITY: 650W
• COLOR: Black
• DIMENSIONS: 150mm(W)x86mm(H)x140mm(D)
• PFC (POWER FACTOR CORRECTION): Active PFC
• POWER GOOD SIGNAL: 100-150 msec
• HOLD UP TIME: 17msec
• INPUT CURRENT: 15A-6A
• INPUT FREQUENCY RANGE: 50Hz/60Hz
• INPUT VOLTAGE: 100-240V~
• OPERATING TEMPERATURE: 5°C to + 40°C
• OPERATING HUMIDITY: 20% to 85%, non-condensing
• STORAGE TEMPERATURE: -40°C to + 55°C
• STORAGE HUMIDITY: 10% to 95%, non-condensing
• COOLING SYSTEM: 12cm FDB Fan
• EFFICIENCY: Meets 80 PLUS® Bronze at 115Vac input.
• MTBF: 100,000 hrs minimum
• SAFETY APPROVAL: FCC/ICES/CB/cTUVus/S-mark
• PCI-E 6+2PIN: 4
• PCI-E 12+4PIN: 1 (300W)
• PROTECTIONS: OCP/OVP/UVP/OPP/OTP/SCP
