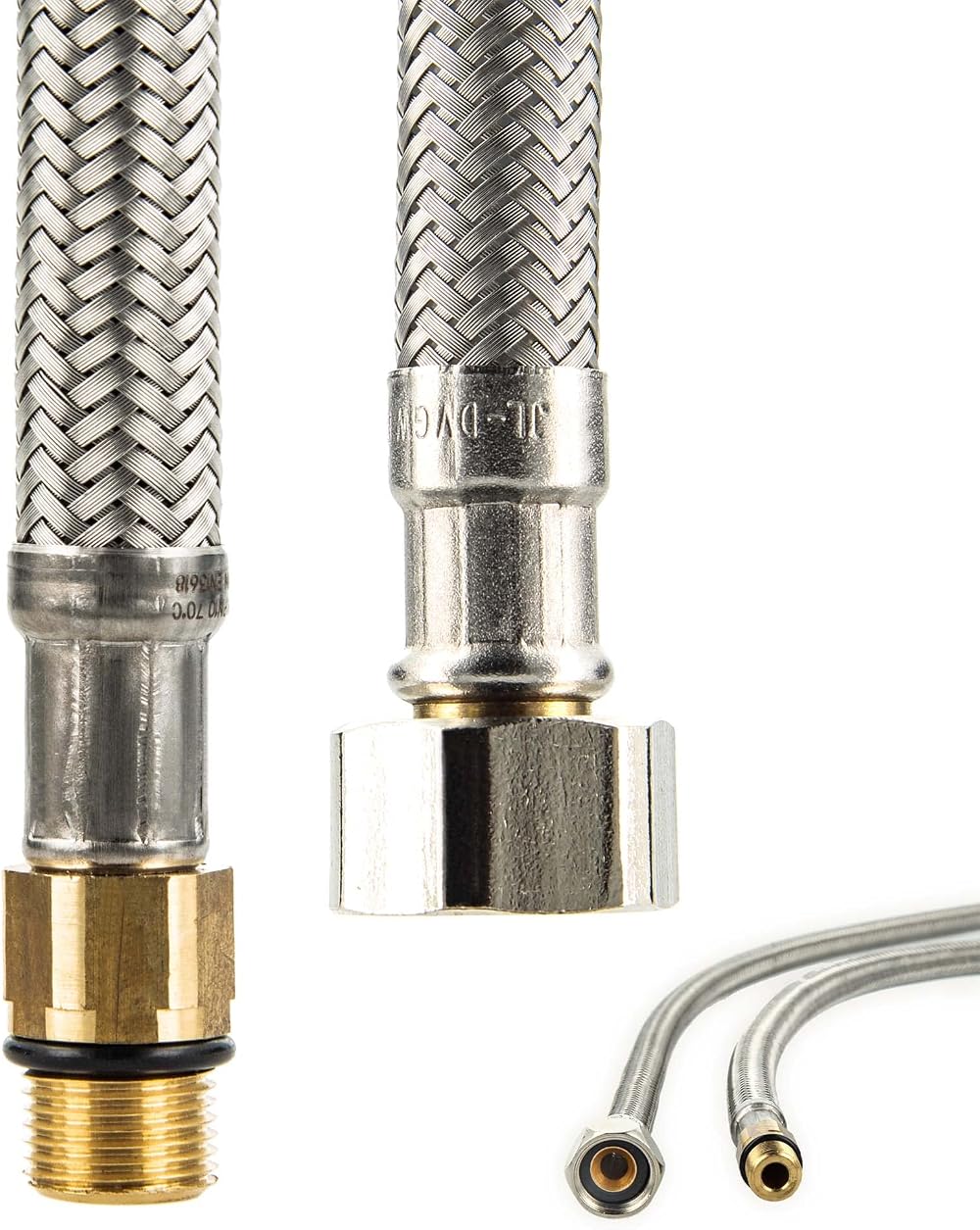

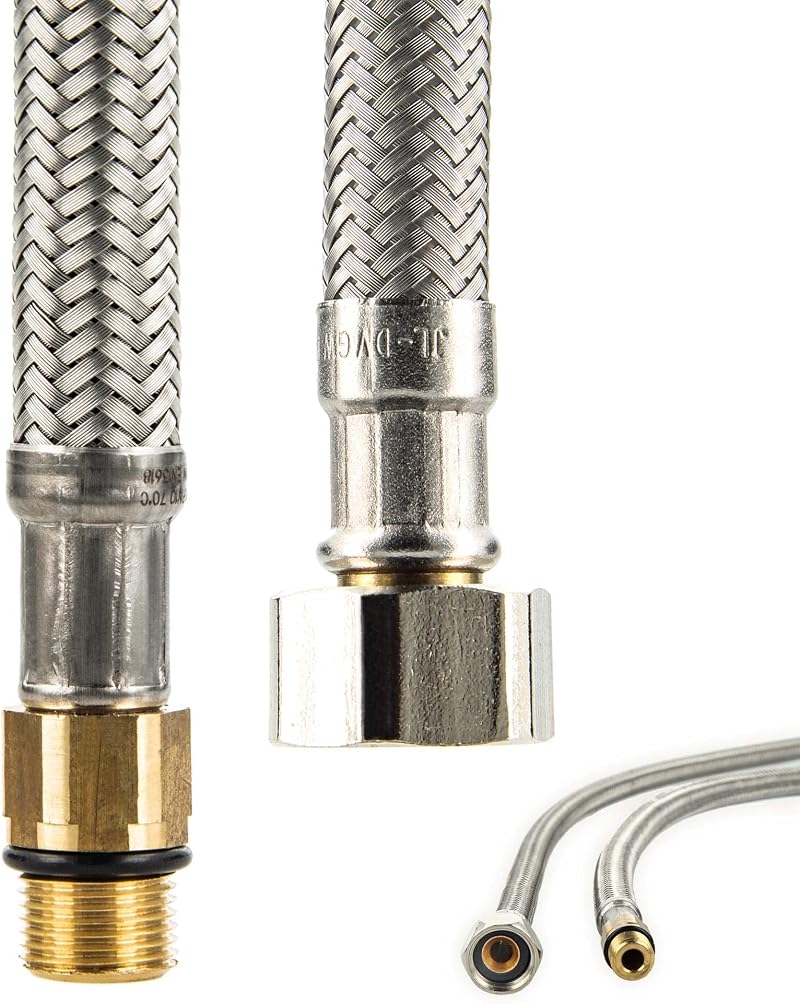

tecuro Sanitary Hose M12x1 Short x 3/8 Union Nut KTW-A DVGW 2000mm

tecuro Sanitary Connection Hose

This flexible connection hose from tecuro is designed for reliably connecting sanitary fittings to angle valves. It features KTW-A and DVGW testing for quality assurance and is temperature resistant for versatile application.

Key Features

• Brand: tecuro
• Design: M12 x 1 short connection to 3/8 inch union nut
• Length: 2000 mm
• Connections: 3/8 inch union nut with pressed-in seal, metric fine thread DN 8 (8 mm inner diameter)
• Temperature Range: -5°C to 70°C
• Pressure Resistant: Up to 10 bar
• Materials: Inner hose HDPE, braided stainless steel 1.4301, connections brass (nickel-plated outside)
• Certifications: KTW-A, W 270 DVGW tested
• Resistances: Very suitable for tap water/drinking water. Suitable for water with glycol admixture, heating oil, diesel, petrol fuel, engine oils, acids, alkalis, and protective gas.

Specifications

• Hose Inner Diameter: 8 mm
• Thread Size 1: M12 x 1 short
• Thread Size 2: 3/8 inch union nut
• Max Temperature: 70°C
• Min Temperature: -5°C
• Max Pressure: 10 bar
• Hose Material: HDPE inner, stainless steel 1.4301 braiding
• Connection Material: Brass (nickel-plated)
