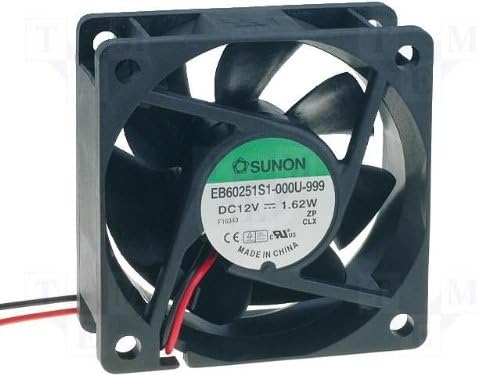

Sunon EB60251S1-999 DC Fan 60x60x25mm 12V 4500RPM 33.5dBA Plain Bearing 2 Wire

Sunon EB60251S1-999 DC Cooling Fan

This is a Sunon EB60251S1-999 DC cooling fan, suitable for various ventilation and cooling applications. It features durable construction and reliable performance.

Key Features

• Brand: Sunon
• Model: EB60251S1-999
• Fan Type: DC
• Dimensions: 60 x 60 x 25 mm
• Bearing Type: Plain Bearings
• Supply Voltage: 12 V DC
• Speed: 4,500 (±15%) rpm
• Noise Level: 33.5 dB(A)
• Connection: 2 cables, 300 mm, AWG26, without a plug
• Motor Type: Brushless DC motor
• Casing Material: Thermoplastic

Specifications

• Volume Flow: 39.7 m3/h
• Power Consumption: 1.62 W
• Static Pressure: 5.33 mm H2O
• Operating Voltage Range: 4.5 ~ 13.8 V
• Weight: 57 g
• Nominal Current: 0.135 A
• Current/Power Consumption Tolerance: ±15%
• Minimum Insulation Resistance: 500 MOhms
• Wings Material: Thermoplastic
• Insulation Class: E
• Operating Temperature: -10 °C to 70 °C
• Flammability Class: UL94V-0
