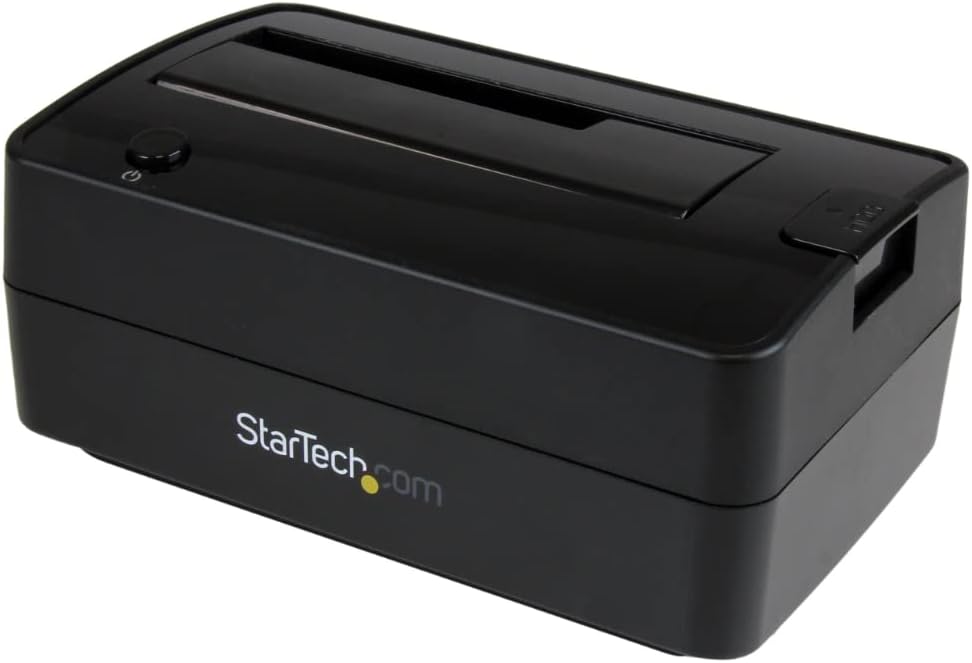

StarTech Single Bay USB 3.1 eSATA to SATA Hard Drive Dock 10Gbps SSD HDD Dock

Product Overview

This StarTech.com single-bay hard drive docking station allows easy access to your 2.5-inch or 3.5-inch SATA hard drives or solid-state drives. It's ideal for file backup, disk imaging, and rapid data transfer, offering versatile connectivity via USB 3.2 Gen 2 (10 Gbps) or eSATA.

Key Features

• Connectivity: Supports 2.5" and 3.5" SATA I, II, and III HDD/SSD drives of any capacity.
• High Performance: Achieves up to 10 Gbps via USB 3.2 Gen 2 or 6 Gbps via eSATA.
• Versatile Connections: Includes 3.3ft (1m) eSATA, USB-A, and USB-C cables for broad compatibility.
• Toolless Design: Simple top-loading drive bay with an eject button for easy drive management.
• OS Independent: No software or drivers required for operation.
• TRIM Support: Built-in SATA controller with upgradeable firmware and TRIM support for SSD optimization.
• Backward Compatible: Works with previous versions of SATA and USB.
• Status Indicators: Features Power and Activity LEDs.

Specifications

• Drive Type: 2.5" and 3.5" SATA HDD/SSD
• Host Interface: USB 3.2 Gen 2 (10 Gbps), eSATA (6 Gbps)
• Data Transfer Rate: Up to 10 Gbps (USB), Up to 6 Gbps (eSATA)
• Form Factor: Single Bay Docking Station
• Dimensions: Top-loading, toolless design
• Included Cables: 1x 1m eSATA Cable, 1x USB-A to USB-C Cable, 1x USB-C to USB-C Cable
• Power: External power adapter (included)
• LEDs: Power, Activity

System Requirements

Operating system independent. Supports any SATA I, II, or III drive.

Note: Adapters for IDE (SAT2IDEADP), mSATA (SAT2MSAT25), and M.2 SATA (SAT32M225) drives are sold separately.
