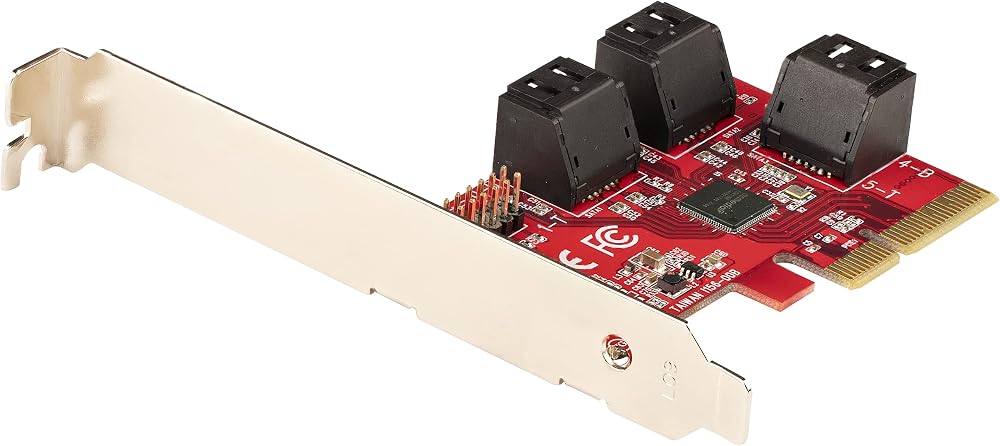

StarTech 6 Port PCIe SATA Expansion Card 6Gbps ASM1166 Non-RAID Low Profile

High Performance Storage Expansion

Add six SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 slot. This 6-port SATA PCIe card connects SATA drives (HDD/SSD) and optical disc drives using SATA cables (sold separately).

Key Features

• Six SATA III Ports: Expands your system with six 6Gbps SATA connections.
• PCIe 3.0 Compatible: Supports PCIe 3.0, SATA 3.2, and AHCI 1.4 features, with backward compatibility for prior generations.
• Non-RAID Controller: Utilizes the ASM1166 controller for direct SATA port expansion without RAID functionality.
• Wide Drive Support: Supports ATA and ATAPI devices including HDDs, SSDs, and optical disc drives.
• Easy Installation: Plug-and-play installation fits both full-height (bracket attached) and low-profile (bracket included) PCI-e slots.
• Operating System Support: Compatible with Windows, macOS (10.10 and up), and Linux (2.6.32 and up).
• Advanced Features: Supports NCQ (Native Command Queuing) for optimized performance.

Specifications

• Brand: StarTech
• Model: 6P6G-PCIE-SATA-CARD
• Interface: PCIe x4
• SATA Ports: 6 x SATA III (6Gbps)
• Controller: ASM1166
• RAID Support: Non-RAID
• Form Factor: Low Profile and Full Profile
• Operating Systems: Windows, macOS, Linux
