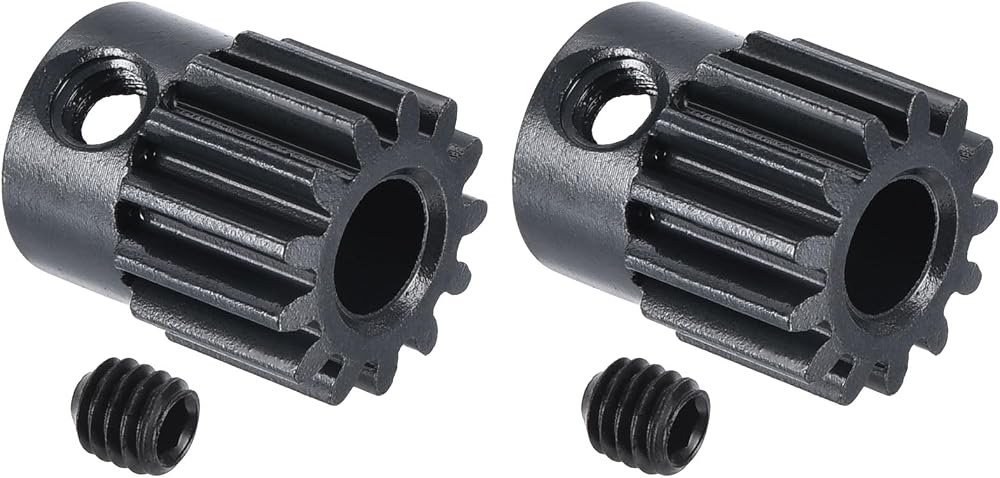

sourcing map 2Pcs 32P 13T Pinion Gear 5mm Shaft Carbon Steel RC Car Boat Drone

Product Overview

This RC Hardened Gear is designed for remote control (RC) models including cars, trucks, boats, and drones. It facilitates the transfer of rotational motion from the motor to other components, enabling forward or backward movement.

Package Includes

• 2pcs x Hardened Motor Gear

Specifications

• Gear Pitch: 32P
• Number of Teeth: 13T
• Inner Diameter: 5mm / 0.2 inch
• Maximum Diameter: 11.9mm / 0.47 inch
• Diameter: 10mm / 0.39 inch
• Height: 14mm / 0.55 inch
• Material: Carbon Steel

Key Features

• Constructed from high-hardness carbon steel to resist deformation.
• Provides smoother and more efficient power transfer for improved acceleration and top speed.

Installation Guide

1. Slide the RC Hardened Pinion Gear onto the motor shaft.
2. Align the gear teeth with the corresponding gears (e.g., spur gear).
3. Ensure the gear is securely seated on the shaft.

Important Note

Please verify that your spur gear and pinion gear share the same pitch to ensure proper meshing of teeth.
