CH341A Flash USB BIOS Programmer v1.7 SPI EEPROM IC Chips Windows Linux

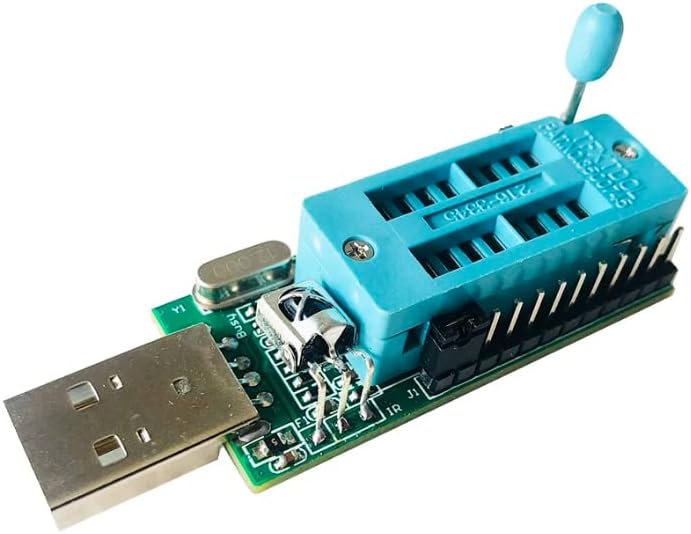

CH341A Flash USB BIOS Programmer v1.7

This CH341A programmer version 1.7 is a versatile tool for reading and writing various EEPROM and SPI flash chips. It is compatible with multiple operating systems and chip voltage levels.

Key Features

• Integrated special level conversion chip supports direct reading and writing of 5V, 3.3V, 2.5V, and 1.8V chips.
• Includes an infrared code measurement module.
• Supports programming for 24, 25/26, 45, 93, and 95 series chips.
• Additionally supports EC data reading and writing for KB9010, KB9012, KB9016, KB9018, and KB9022.
• Open-source software allows for user-added chip types and software source code modification.
• TTL support up to 1.8V level, suitable for specialized applications.
• Features status lights for read/write operations and TTL status.
• Supports TTL self-check functionality.
• Can open ASUS cap files directly.
• Locking seat enhancements include a strong pull-down resistor for 24xx series and a pull-up resistor for 25xx series.

Specifications

• Model: CH341A Programmer v1.7
• Interface: USB
• Operating System Support: Windows 10/8.1/8/7/Vista/XP/2000, Linux Ubuntu 18.4, Linux
• Compatibility: PC/Laptop
• Supported Chip Voltage Levels: 1.8V, 2.5V, 3.3V, 5V
• Supported Chip Series: 24, 25/26, 45, 93, 95
• EC Data Support: KB9010, KB9012, KB9016, KB9018, KB9022
• TTL Level Support: Up to 1.8V
