0102015 2 Channel IP Network Relay Switch Module TCP UDP MODBUS for Motor Light

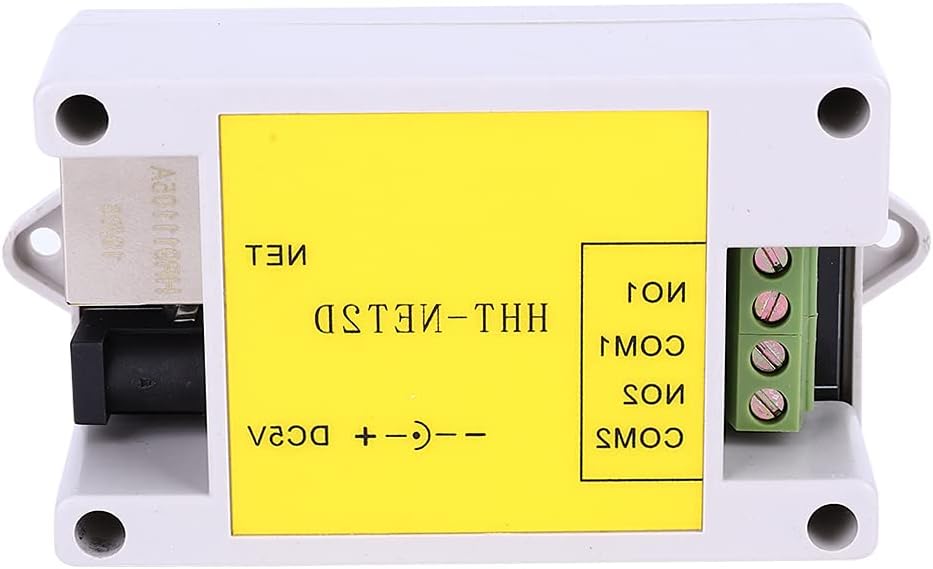

IP Network Relay Switch Module

This 2-channel IP network relay module offers reliable remote control for various electrical applications. It supports multiple operating modes and advanced customization features for seamless integration.

Key Features

• Supports TCP server, TCP client, and UDP modes.
• TCP server mode allows 4 client connections and supports MODBUS TCP protocol.
• Online program updates for easy customization.
• Customizable device name with Chinese definition support.
• User-defined heartbeat packet time for reliable recovery.

Specifications

• Brand: 01 02 015
• Supply Voltage: 5V
• Current: Not less than 1A
• Relay Rating: 2KW (AC load 250V, 10A; DC load 30V, 5A)
• Dimensions: Approx. 81 x 50 x 31mm / 3.2 x 2 x 1.2in
• Operating Temperature: -40℃ to 80℃

Applications

• Smart home control, router restart management.
• Remote control of electric lights, motors, and other equipment via mobile phone or computer.
• Power failure detection in computer rooms.
• Integration with human body infrared sensors, key switches, smoke alarm outputs.
• Access control and electrical appliance remote control.
• Control via external network and remote mobile phone control.

Control Instructions

Send: 'on1' turns on the first relay.
