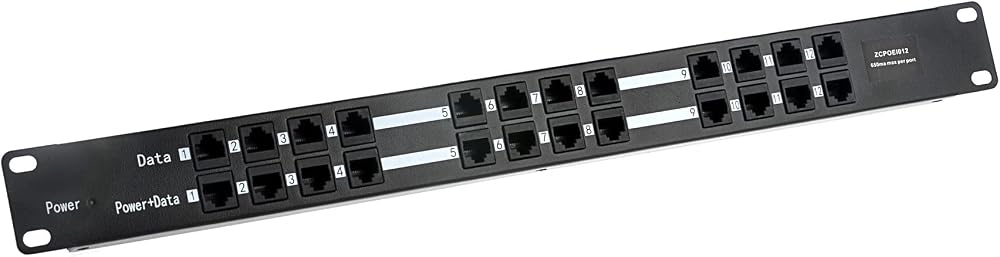

WiFi-Texas PoE Injector 12 Port 1U Rack Mount IEEE 802.3af Passive 100Mbps

Product Overview

This 12-port PoE injector from WiFi-Texas is designed to deliver Power over Ethernet to compatible devices. It allows for data transmission at 10/100Mbps and is ideal for powering IP cameras, IP phones, and wireless access points. The injector operates in a power-always-on mode and is compatible with 802.3af and 802.3at standards.

Key Features

• Rack Mountable: 1U form factor for easy integration into server racks.
• Wide Compatibility: Works with any PoE or non-PoE switch.
• PoE Standards: IEEE 802.3af and 802.3at compatible.
• Power Indicator: LED lights to show device status.
• Data Rate: 10/100Mbps.
• DC Connector: 2.1mm x 5.5mm.
• Operation Modes: Pairs 1, 2 and 3, 6.
• Protection: 650mA automatic resettable fuses on each port.
• Operating Temperature: 0°C to 65°C.

Specifications

• Brand: WiFi-Texas
• Model: POE-12-1U
• Dimensions: 508 x 101.6 x 50.8mm
• Weight: 26 oz

Important Notes

Power Supply is not included with this product. Compatible power supplies (24V and 48V) are available separately.
