owootecc NT68676 LCD Controller Board Kit HDMI VGA DVI Audio Case 17" 19"

owootecc NT68676 LCD Controller Board Kit

This owootecc NT68676 LCD Controller Driver Board Kit is designed to bring new life to your compatible 17-inch and 19-inch LCD panels. It features HDMI, DVI, and VGA inputs for versatile connectivity and includes an audio input/output for a complete multimedia experience. The included acrylic case provides a clean and protected enclosure for the board. This kit is specifically designed to be compatible with Arcade1Up monitors.

Key Features

• Controller Board: NT68676 chipset for LVDS LCD screens
• Video Inputs: HDMI, DVI, VGA
• Audio Input: HDMI (also supports audio through HDMI)
• Audio Output: Speaker Connector
• Power Requirements: 12V DC, 3A or more
• Standby Mode: Consumes less than 1W when no signal is present
• OSD Menu: Adjustable settings for brightness, contrast, language, and more
• Language Support: English, French, German, Spanish, Italian, and others
• Panel Compatibility: 17" and 19" LCD panels with 1280x1024 resolution and 30-pin LVDS interface (see compatible panel list below)
• Case: Includes an acrylic case for the controller board

Compatible LCD Panels (1280x1024 Resolution)

17-inch Panels:

• M170EG01, M170EG02, M170EN01, M170EN04, HSD170ME13
• M170EN05, M170EN06, LM170E03, LTM170EX, LTM170EU
• LTM170EH, LTM170E5, LTM170E6, LTM170E8

19-inch Panels:

• LM190E02, LM190E03, LM190E08, M190E5, G190EG01
• M190EG02, M190EG03, M190EN01, HSD190MEN4, HSD190ME11
• HSD190ME12, HSD190ME13, LTM190EX, LTM190E1, LTM190E2
• LTM190E3, LTM190E4

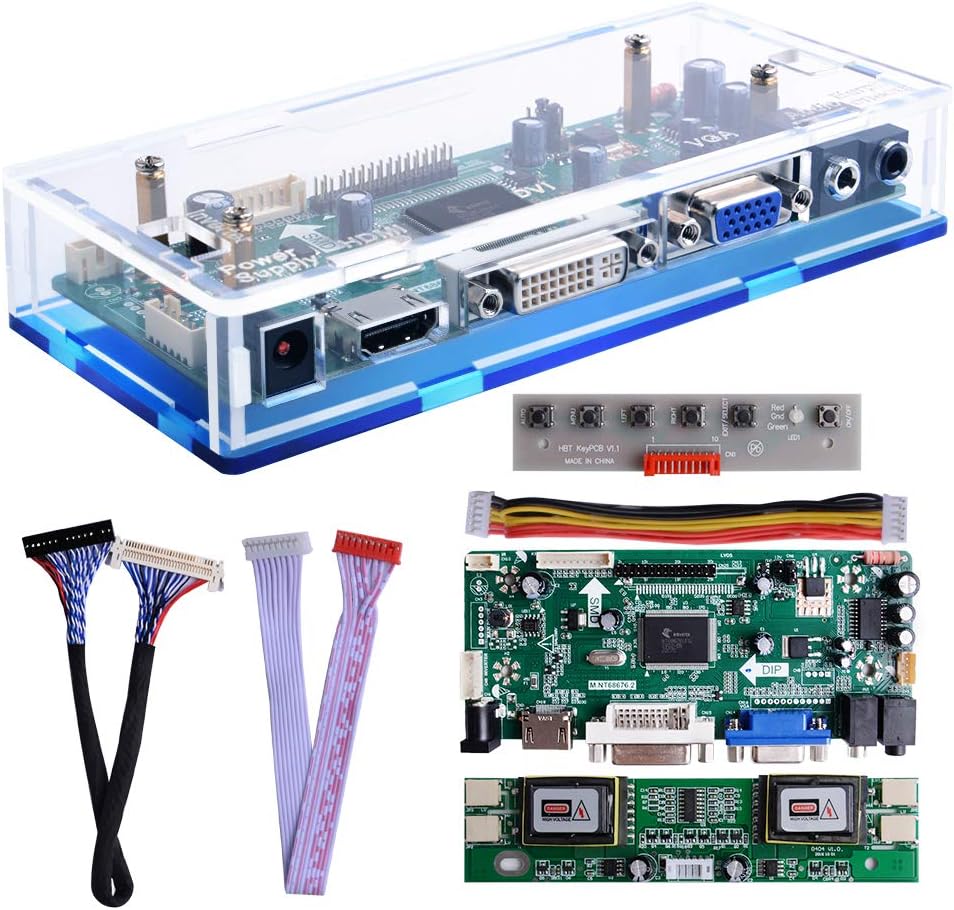

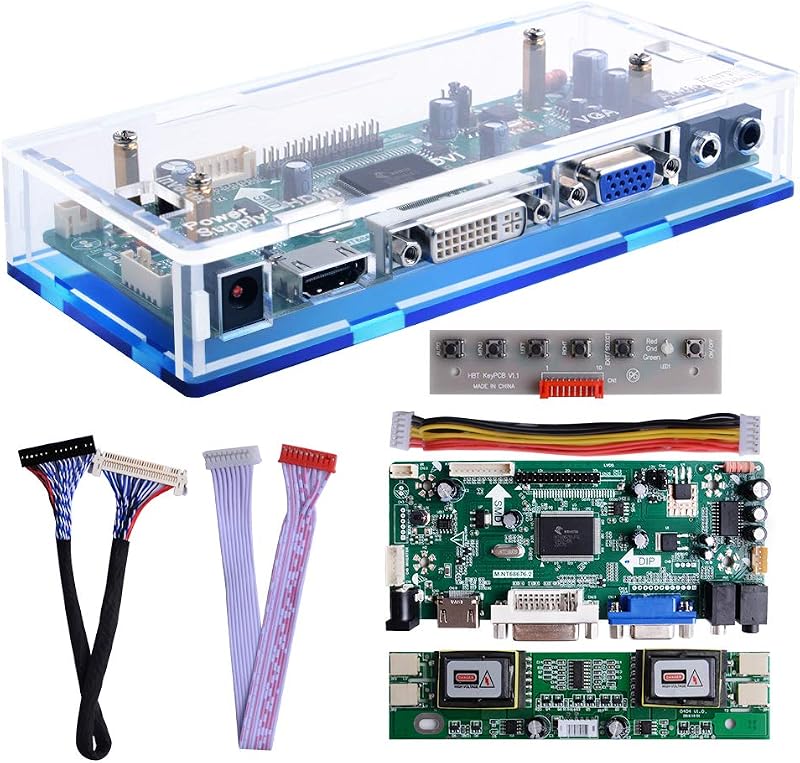

Package Includes:

• 1 x owootecc HDMI VGA DVI LCD Controller Board M.NT68676
• 1 x 4CCFL Inverter Board
• 1 x 30-Pin Signal Cable
• 1 x Keyboard with Cable
• 6 x Acrylic boards for NT68676
• 8 x M2.5 screws
• 8 x M2.5x6 copper stick
• 8 x Hollow Copper Pillar
• 1 x Screw Driver

Specifications

• Board Size: 125mm x 58mm x 17mm
• Input Power: 12V DC, 3A+
• Resolution: Up to 1280x1024
• Interface: LVDS (30-Pin)
