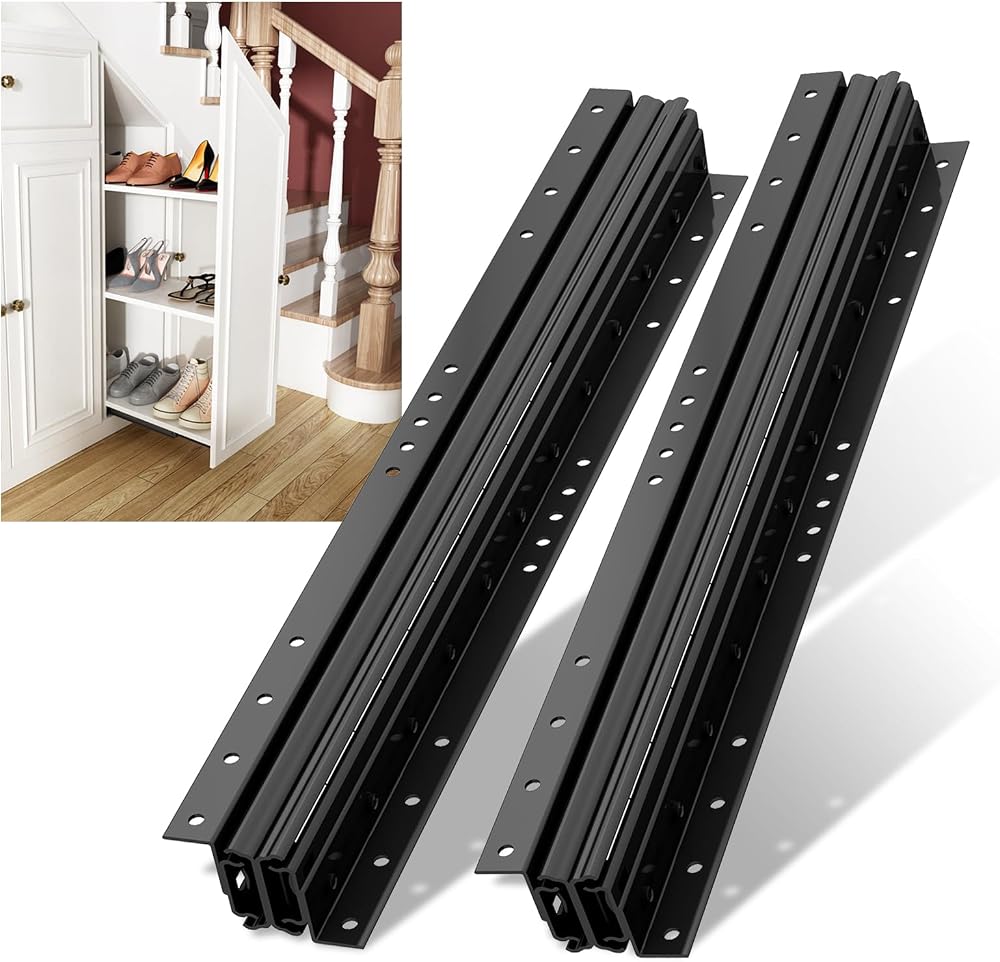

NECILO 800mm Bottom Mount Concealed Drawer Runners 120 kg Full Extension

Key Features

• Brand: NECILO
• Type: Undermount Bottom Mount Concealed Drawer Runners
• Load Capacity: 120 kg / 265 lbs
• Extension: 3-Fold Full Extension (original length 800 mm, full extension 1850 mm)
• Material & Finish: 2.0 mm cold-rolled steel with electroplated coating for corrosion resistance
• Mounting: Bottom mounting design for under-stair and base cabinets; requires M4 screws (not included)
• Crucial Design: Smooth, silent operation with dual steel ball bearings and rear rubber mute pad
• Compatibility: Minimum cabinet depth is slide length plus 10 mm; suitable for narrow or high storage spaces

Specifications

• Brand: NECILO
• Model: Undermount Heavy Duty Drawer Runner
• Original Length: 800 mm (31.50 in)
• Full Extension Length: 1850 mm (72.83 in)
• Pieces Included: 1 Pair (2 Packs)
• Maximum Carrying Capacity: 120 kg / 265 lbs
• Materials: 2.0 mm cold-rolled steel; electroplated coating
• Installation: Provided installation note manually; suitable for under-stair cabinets and large storage cabinets

These NECILO undermount drawer runners maximize space utilization in low-clearance areas while concealing rails for a refined look. They are designed for long service life with smooth, quiet operation.
