MikroTik OmniTIK 5 PoE ac WLAN Access Point 5GHz 1300mW 7.5dBi PoE Out Gigabit

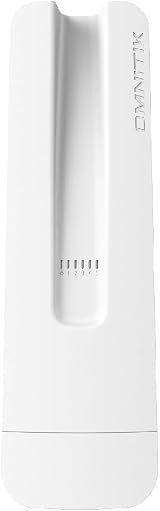

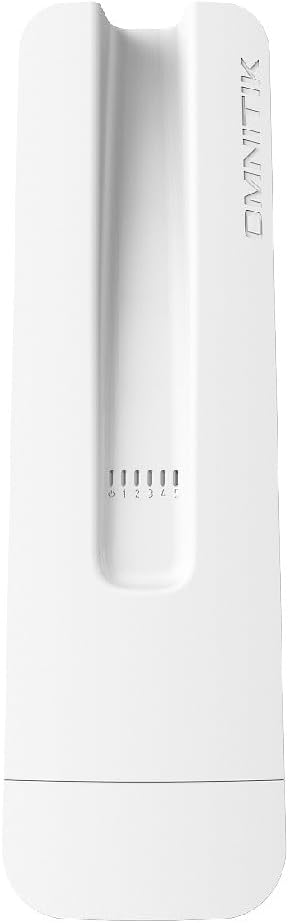

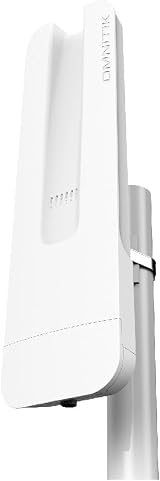

MikroTik OmniTIK 5 PoE ac WLAN Access Point

The OmniTIKPG-5HacD is an advanced outdoor WLAN access point from MikroTik, offering high performance and versatile power capabilities. This model is an upgraded version of the popular OmniUPA-5HnD, featuring a radio compatible with the modern 802.11ac standard, a more efficient 720 MHz processor (QCA9557), and 128 MB of RAM.

Designed for outdoor use, the OmniTIK 5 PoE ac is built with all necessary protectors. A key feature of the OmniTIKPG version is its Power over Ethernet (PoE) output functionality. Ports 2 through 5 support PoE output, compatible with both passive PoE and the 802.3af/at standards. The output voltage matches the input voltage.

This access point comes equipped with two omnidirectional antennas, each providing an integrated 7.5 dBi gain. The radio delivers significant power, up to 31 dBm (1300 mW). It features 5 gigabit Ethernet ports and an additional USB port. Please note that this device operates exclusively on the 5 GHz band and is not a dual-band access point.

Key Features

• Brand: MikroTik
• Model: OmniTIKPG-5HacD
• Wireless Standard: 802.11ac
• Frequency Band: 5 GHz only
• Antennas: 2 x 7.5 dBi omnidirectional
• Transmit Power: Up to 31 dBm (1300 mW)
• Ethernet Ports: 5 x Gigabit
• USB Port: 1 x Additional
• PoE Output: Yes, on ports 2-5 (Passive PoE, 802.3af/at compatible)
• Processor: 720 MHz (QCA9557)
• RAM: 128 MB
• Operating System: RouterOS Level 4 licensed
• Power Input: 12 - 57 V passive PoE
• Included Power Supply: 28 V, 2.57 A
• Outdoor Ready: Yes

Specifications

• CPU: QCA9557
• CPU Core Count: 1
• CPU Frequency: 720 MHz
• RAM: 128 MB
• 10/100/1000 Ethernet Ports: 5
• Wireless Chipset: QCA9888
• IPsec Hardware Acceleration: Yes
• USB Port: 1 (Type A)
• Power Input: Passive PoE
• PoE Input Voltage: 12-57 V
• PoE Output: Ports 2-5
• PoE Output Voltage: Input voltage
• PoE Output Standards: Passive PoE, 802.3af/at
• Max Power Consumption: 24 W
• Dimensions: 368 x 128 x 58 mm
• Weight: 700 g
