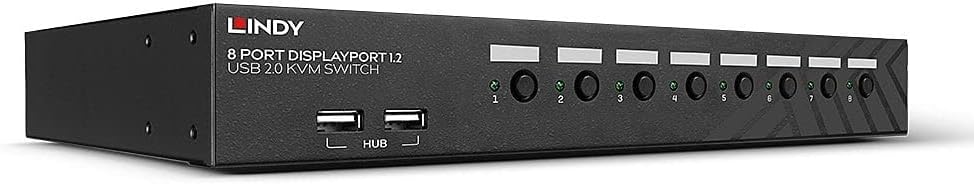

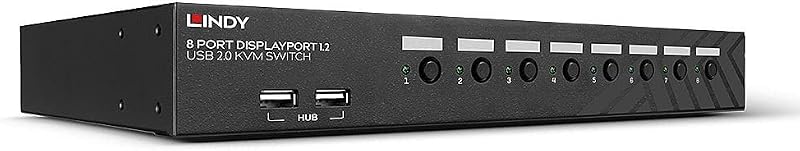

LINDY 8 Port DisplayPort 1.2 USB 2.0 KVM Switch 4K 60Hz Rackmount Audio

Overview

Control and manage multiple PCs and Macs from a single keyboard, mouse, and display console with the LINDY 8 Port DisplayPort 1.2 USB 2.0 KVM Switch. This advanced KVM switch is designed for efficient operation in demanding environments, including gaming, video editing, and multi-workstation setups.

Key Features

• DisplayPort 1.2 Video Ports: Supports up to 4K Ultra HD 60Hz resolutions for crisp, detailed visuals.
• Two Port USB 2.0 Hub: Connect and share peripherals like printers, scanners, and external drives between connected computers.
• Independent USB Hub Switching: The USB hub can be switched independently of the PCs, ensuring uninterrupted peripheral access.
• Audio Support: Connect speakers or headsets for a complete multimedia experience.
• Rackmount Design: Occupies a single 1U space in a 19” rack for efficient space utilization.
• Dual Switching Modes: Easily switch between computers using keyboard hotkeys or front panel buttons.
• Local Console Access: Dedicated 2 USB and DP ports on the rear panel for the operator's console.
• LED Indicators: Clearly show the status of the selected channel.

Specifications

• Brand: LINDY
• Model: 8 Port DisplayPort 1.2 USB 2.0 KVM Switch
• Video Resolution Support: Up to 4K Ultra HD 60Hz
• USB Hub: 2 Port USB 2.0
• Switching Methods: Keyboard Hotkeys, Front Panel Buttons
• Rack Space: 1U
• Maximum USB Cable Distance: 5m (standard cables)

Important Notes

Connection cables are not included. DisplayPort, USB A to B, and 3.5mm audio cables are required for each connected computer.

For USB distances over 5m, use a Lindy USB Active Extension Cable.

MST hubs are not supported.
