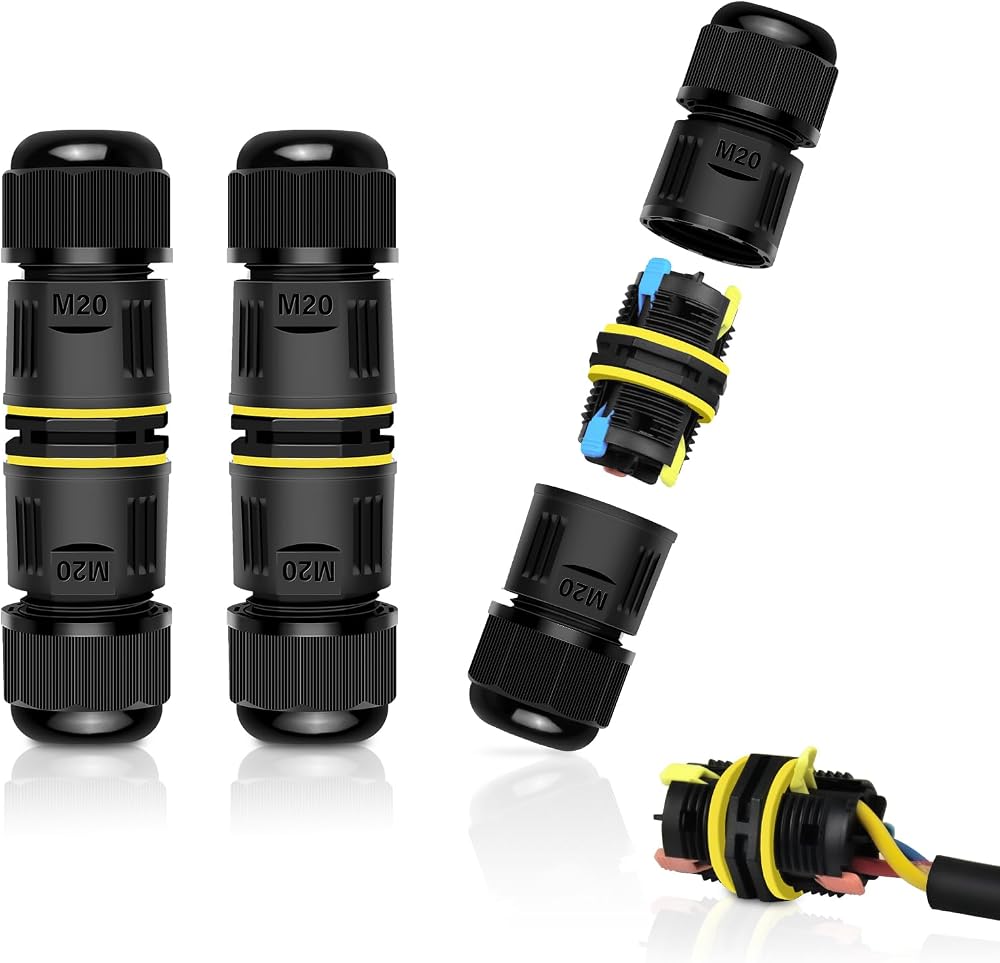

NineLeaf 3PK M20 Outdoor Waterproof Electrical Junction Box Cable Connector

NineLeaf Outdoor Waterproof Junction Box

This NineLeaf junction box is designed for secure outdoor electrical connections, perfect for road landscape lights, external cord boxes, and other outdoor applications. It features IP68 waterproof, moisture-proof, and dustproof protection with a double layer of sealing for excellent performance, even suitable for underwater use up to 4 meters.

Key Features

• Sealed Waterproof: IP68 rated with waterproof gel core and sealing ring for superior protection against water and dust.
• Premium Materials: Constructed from flame-retardant nylon, copper, and silicone, offering corrosion resistance, high-temperature resistance, and V-0 flame retardancy (CE Certified).
• 2-Way 3-Pin Connector: Accommodates cable diameters from 5mm to 12mm (wiring range 0.5mm²-4mm²), supporting up to 450V and 25A.
• Wide Temperature Range: Operates effectively between -40°C and 105°C.
• Simple Installation: Compact, screwdriver-free design. Simply strip wires, insert, and pull the lever to complete the connection. Ideal for DIY projects.
• Versatile Application: Suitable for LED billboards, tunnel lights, road landscape lights, outdoor lighting, courtyard lights, street lights, coastal, riverside, underwater, underground, mining, solar power, and heavy industrial machinery.
• Complete Package: Includes 3 junction boxes and two types of rubber gaskets to accommodate different wiring needs (common cable sizes 5-9mm and 9-12mm).

Specifications

• Brand: NineLeaf
• Model: M20
• Waterproof Rating: IP68
• Number of Pins: 3-PIN
• Cable Diameter Range: Ø5-12mm
• Wiring Range: 0.5mm²-4mm²
• Maximum Voltage: 450V
• Maximum Current: 25A
• Working Temperature: -40°C to 105°C
• Material: Flame-retardant nylon, copper, silicone

Each junction box comes with one type of rubber gasket pre-installed, with an additional type included as a gift to ensure optimal waterproof performance for various cable sizes.
