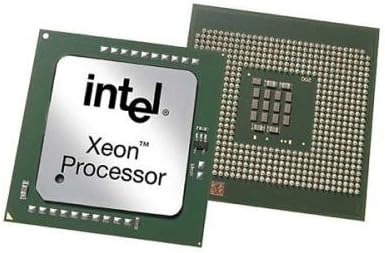

IBM 59Y4024 Intel Xeon X5660 2.8GHz 12MB LGA1366 Processor Upgrade

IBM Processor Upgrade

This IBM 59Y4024 is a processor upgrade featuring the Intel Xeon X5660 processor. Designed for industry-leading performance and energy efficiency, this 64-bit hexa-core processor is suitable for a wide range of server and workstation applications, including infrastructure, cloud, high-density, and high-performance computing (HPC).

Key Features

• Brand: IBM
• Processor Model: Intel Xeon DP Hexa-core X5660
• Processor Speed: 2.8 GHz (3.2 GHz Turbo Boost)
• Cores: Hexa-core (6 Core)
• Cache: 12 MB L3 Cache
• Socket: Socket B LGA-1366
• Front Side Bus Speed: 6.40 GT/s
• TDP: 95 W
• Manufacturing Process: 32 nm
• Memory Type: DDR3 SDRAM
• Enhanced SpeedStep Technology
• Extended Memory 64 Technology
• Hyper-Threading Technology
• Turbo Boost Technology
• Trusted Execution Technology
• RoHS Compliant

Specifications

• IBM Part Number: 59Y4024
• Intel Processor Number: X5660
• Clock Speed: 2.66 GHz
• Intel® Turbo Boost Technology frequency: 3.20 GHz
• Intel® Smart Cache: 12 MB
• Intel® QPI speed: 6.4 GT/s
• TDP: 95 W
• Max number of Uniproc. Systems: 1
• Max number of SMP Systems: 2
• Lithography: 32 nm
• Max core count: 6
• Max thread count: 12
• Socket Supported: FCLGA1366
• Max CPU Upgrade: 1S, 2S
• Max Memory Size (dependent on memory type): 288 GB
• Memory Types: DDR3 800/1066/1333
• ECC Memory Supported: Yes
• Tjunc: 84.3°C
