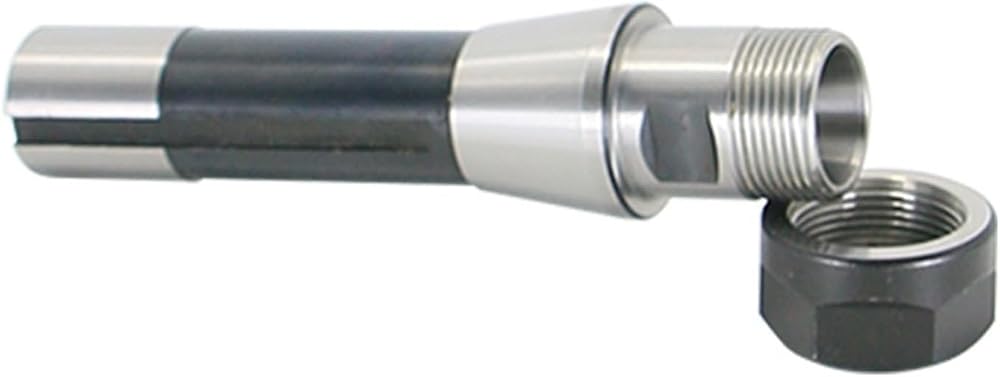

R8 ER Collet Chuck Tool Holder R8-ER32UM 0.008mm Precision Steel CNC Milling

HWWEI R8 ER Tool Holder

This R8 ER Tool Holder is designed for precision CNC milling applications, offering exceptional accuracy and durability. Manufactured from high-quality 42CrMnTi steel, it ensures long-lasting performance and wear resistance.

Key Features

• Product Name: R8 ER16 ER20 ER25 ER32 ER40 Tool holder
• Precision: 0.008mm
• Material: High quality steel 42CrMnTi
• Hardness: Greater than HRC45~55°
• True Roundness: 0.8
• Carburizing Depth: 0.8
• Surface Roughness: 0.8
• Applicable Machines: CNC, computer gong, high-speed machines
• Exquisite workmanship and polishing treatment
• Automated production process for stable accuracy
• Durable and wear-resistant

Nut Installation and Usage

The internal oval design of the nut is standard. Follow these steps for proper installation:

1. Insert the chuck diagonally from the side of the nut with the smallest oval diameter.
2. Gently push the chuck to fully enter the oval cavity.
3. Once the chuck is inside the nut, install your fixture (e.g., milling cutter).
4. Disassembly follows the same steps (remove fixture first if applicable).

The priority is to ensure the chuck is securely seated in the nut without falling out before placing it in the tool holder and tightening the nut. The chuck is spring-loaded; tightening the screw increases clamping strength.

Specifications

• Model: R8-ER32UM
• Thread: 7/16
• Collet Sizes Supported: ER16, ER20, ER25, ER32, ER40
