Hoymiles HM-800 Micro Inverter 800W Balcony Power Plant AC 230V VDE-AR-N-4105

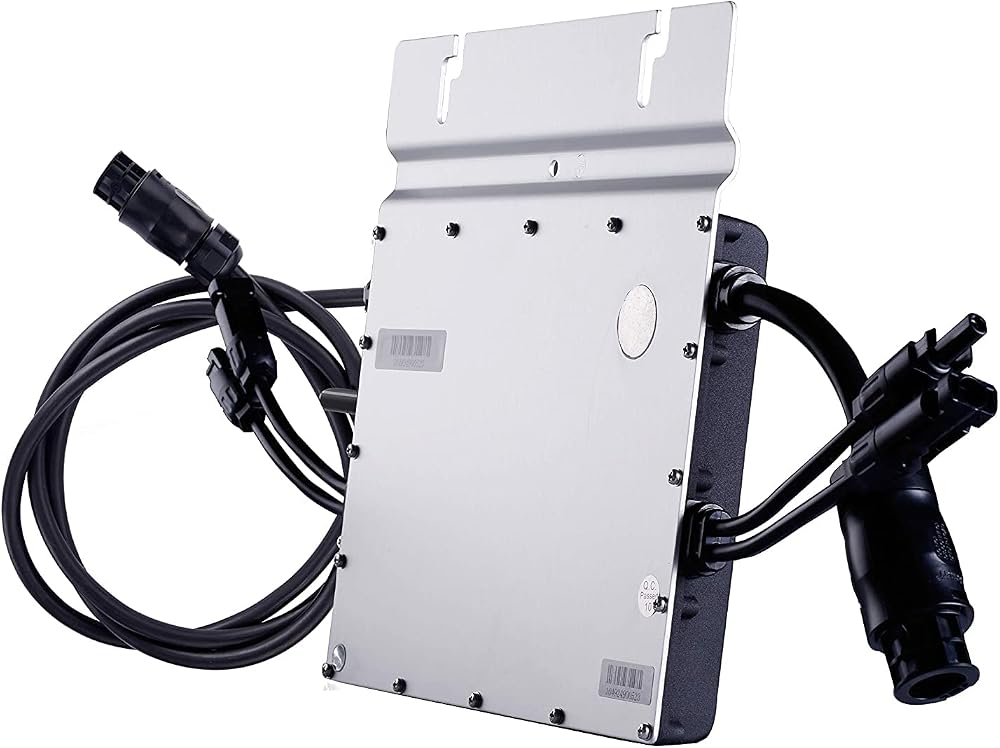

Hoymiles HM-800 Micro Inverter

The Hoymiles HM-800 (AC 800W) micro inverter is designed for the direct connection of two PV modules (2 x 320Wp to 500Wp module power each). This 1-phase module inverter efficiently converts solar power into grid-compliant electricity and feeds it directly into your home network for immediate use.

This inverter meets all German standards and regulations, including VDE-AR-N 4105, featuring an integrated ENS protection circuit. Manufactured by Hoymiles, a world-leading inverter producer, it offers reliability and performance for your balcony power plant.

Product Highlights

• Brand: Hoymiles
• Model: HM-800
• Rated Power: 800 Watts
• Warranty: 12 Years
• Peak Efficiency: 96.7%
• CEC Efficiency: 96.5%
• Compliance: VDE-AR-N-4105 and EN50549-1
• Module Compatibility: Suitable for standard 60 or 72 cell solar panels
• MPPT: Dual MPP Tracker
• Antenna: External antenna for enhanced communication
• Standby Consumption: < 50mW (low night standby)
• Installation: Easy and maintenance-friendly
• Surge Protection: 6000V
• Input Voltage Range: 16 V - 60 V
• Connectors: MC4 Compatible Module Connectors
• AC Connection: Daisy Chain capable
• Cooling: Passive (fanless)
• Operating Temperature: -40°C ~ + 65°C
• Protection Class: IP67
• Dimensions: 250 x 170 x 28 mm

Specifications

Input Data

• Recommended PV Power: 2 x 320Wp - 500Wp
• Optimised for: 60 and 72 cell modules
• MPPT Voltage Range: 34-48V
• Operating Voltage Range: 16-60V
• Max. PV Voltage: 60 V
• Max. Input Current: 2 * 12.5A

Output Data

• Rated Power: 800 W
• Rated Output Current: 3.48A
• Rated Output Voltage: 230 V
• Rated Frequency: 50 Hz
• Power Factor: > 0.99 (-0.8 to +0.8)
