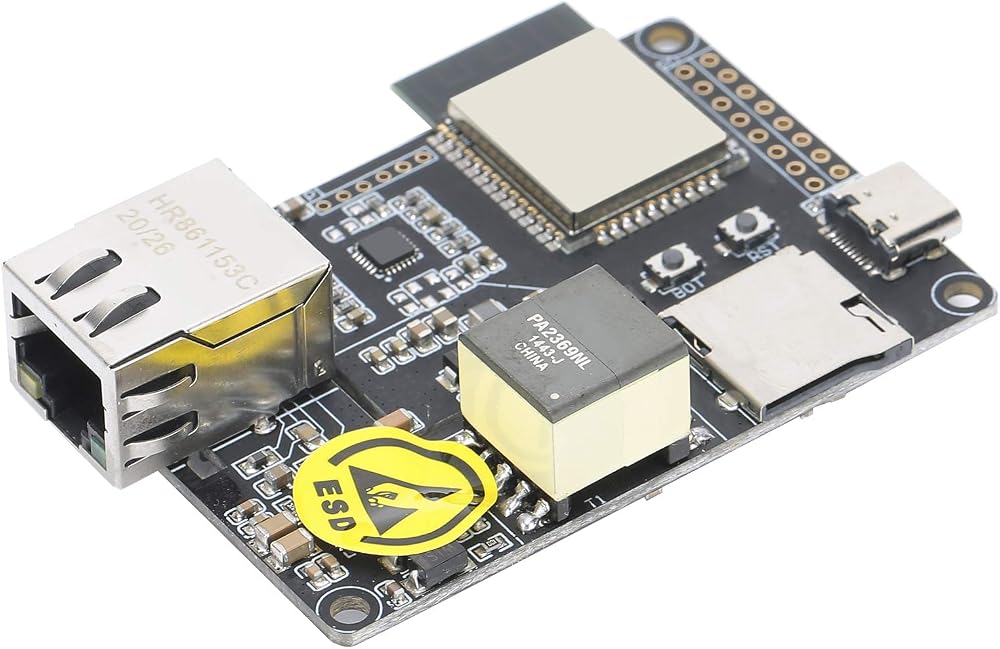

Heayzoki ESP32 Ethernet Adapter LAN8720A WiFi PoE Expansion Board Type-C

Heayzoki ESP32 Ethernet Adapter Expansion Board

This Heayzoki Ethernet Adapter Expansion Board features the ESP32-WROOM chipset with a LAN8720A Ethernet chip and SI3404 Power Management Chip. It provides a programmable hardware solution for your networking projects.

Key Features

• ESP32 Chip Standards: FCC/CERED/IC/TELEC/KCC/SRRC/NCC
• WiFi: 802.11 b/g/n (up to 150Mbps), AMPDU and AMSDU polymerization, 0.4μS Protection interval. Frequency range 2.4GHz-2.5GHz. Transmit Power 22dBm. Communication distance approx. 300m/384.3ft.
• Bluetooth: V4.2 BR/EDR and BLE standard, 97dBm sensitivity receiver, AFH, CVSD&SBC audio frequency.
• WiFi Modes: Station, SoftAP, SoftAP+Station, P2P.
• Security: WPA/WPA2/WPA2Enterprise/WPS encryption (AES/RSA/ECC/SHA).
• Firmware Upgrade: UART download, OTA (Over-The-Air) through network, or host download.
• Software Development: Supports cloud server development and SDK for user firmware development.
• Networking Protocols: IPv4, IPv6, SSL, TCP/UDP, HTTP, FTP, MQTT.
• User Configuration: AT+ Instruction set, cloud server, Android/iOS app, OS X, FreeRTOS.
• On-board Components: 4MB Flash, 8MB pSRAM, 520kB SRAM, BOT and Rest buttons, Memory Card Slot, Type-C Interface, PA2369NL 1825-S Transformer, HR861153C Ethernet-POE interface, CP2104 USB to TTL.
• Modular Interface: Memory Card, UART, SPI, I2C, PWM, I2S, ADC.
• On-board Clock: 32.768MHz Crystal Oscillator.
• Operating Temperature: -40°C to +85°C.

Specifications

• Material: PCB
• Color: As Pictures Shown
• Weight: Approx. 31g/1.1oz
• Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A, SI 3404
• Power Supply Input: Type-C 5V, HR861153C Ethernet-POE interface 50V
• Working Voltage: 2.7V-3.6V
• Maximum Output Current: Approx. 1.2A
• Charging Current: 500mA
• Interface: Type-C

Package Includes

• 1 x Ethernet Adapter
• 1 x Pin
