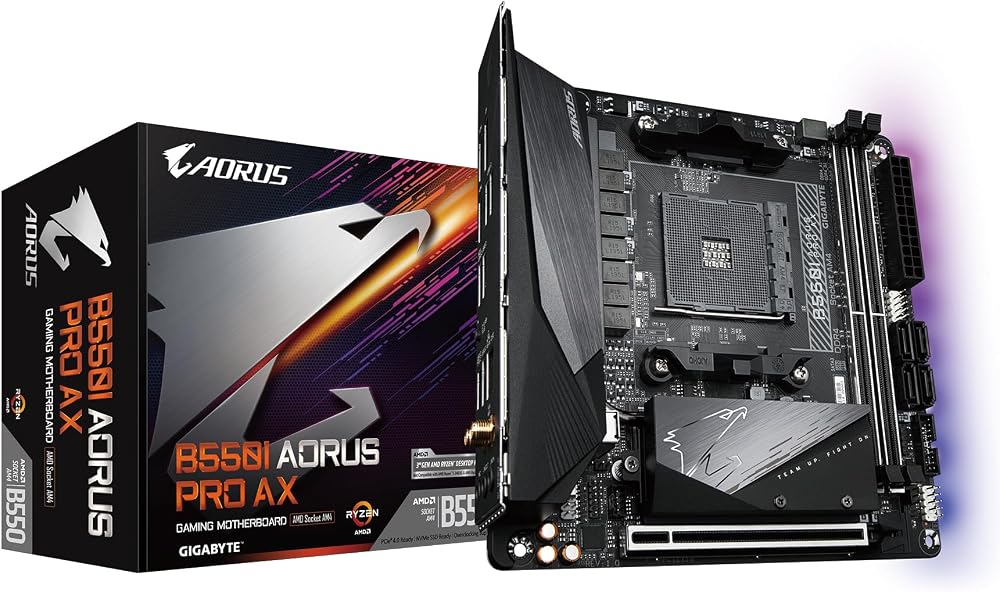

Gigabyte B550I AORUS PRO AX AM4 Mini-ITX Motherboard WiFi 6 2.5GbE LAN PCIe 4.0

GIGABYTE B550I AORUS PRO AX Motherboard

This GIGABYTE B550I AORUS PRO AX motherboard is designed for AMD Ryzen processors and offers a compact Mini-ITX form factor with high-performance features for gaming and demanding applications.

Key Features

• Supports 3rd Generation AMD Ryzen Processors
• Dual Channel ECC/Non-ECC Unbuffered DDR4, 2 DIMMs
• Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
• Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
• Ultra Durable PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• Onboard Intel WiFi 6 802.11ax 2T2R & Bluetooth 5 with AORUS Antenna
• AMP-UP Audio with Realtek ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
• Blazing Fast 2.5 Gigabit Ethernet LAN with Bandwidth Management
• USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI 2.0b Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
• Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Q-Flash Plus for BIOS Update without CPU, Memory, or GPU installation
• Pre-installed IO Shield for easy and quick installation

Specifications

• Chipset: AMD B550
• CPU Socket: AM4
• Form Factor: Mini-ITX
• Memory: DDR4, 2 DIMMs
• Storage: Dual M.2 slots (PCIe 4.0/3.0 x4), SATA 6Gb/s
• Networking: Intel WiFi 6 802.11ax, 2.5 Gigabit Ethernet
• Audio: Realtek ALC1220-VB
• Video Output: DisplayPort 1.4, 2x HDMI 2.0b
• USB: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1
