N/C Controller Board HDMI VGA 2AV For N156BGE-L11 L21 L31 L41 L51 L52 L61 L62

Controller Board for N156BGE-L11/L21/L31/L41/L51/L52/L61/L62/LA1/LB1 LCD Screen

This controller board is designed for EDP interface LED panels with a resolution of 1920x1080 and a refresh rate of 60Hz. It offers versatile connectivity options, including HDMI, VGA, and dual AV inputs.

Key Features

• Panel Compatibility: Suitable for N156BGE series LCD screens (e.g., N156BGE-L11, N156BGE-L21, N156BGE-L31, N156BGE-L41, N156BGE-L51, N156BGE-L52, N156BGE-L61, N156BGE-L62, N156BGE-LA1, N156BGE-LB1).
• Resolution Support: Compatible with 1366x768 resolution panels.
• Input Ports: Features 2 x Mini HDMI, 1 x VGA, and 2 x AV inputs.
• Audio Output: Supports small speaker and earphone output.
• Power Options:
  • DC 12V 2A power supply (DC Port: 1.35MM inner and 3.5MM outer).
  • Micro USB 5V 2A power supply.
• Language Support: Available in Chinese and English.

Specifications

• Board Size: 82mm (Length) x 60mm (Width) x 10mm (Height).

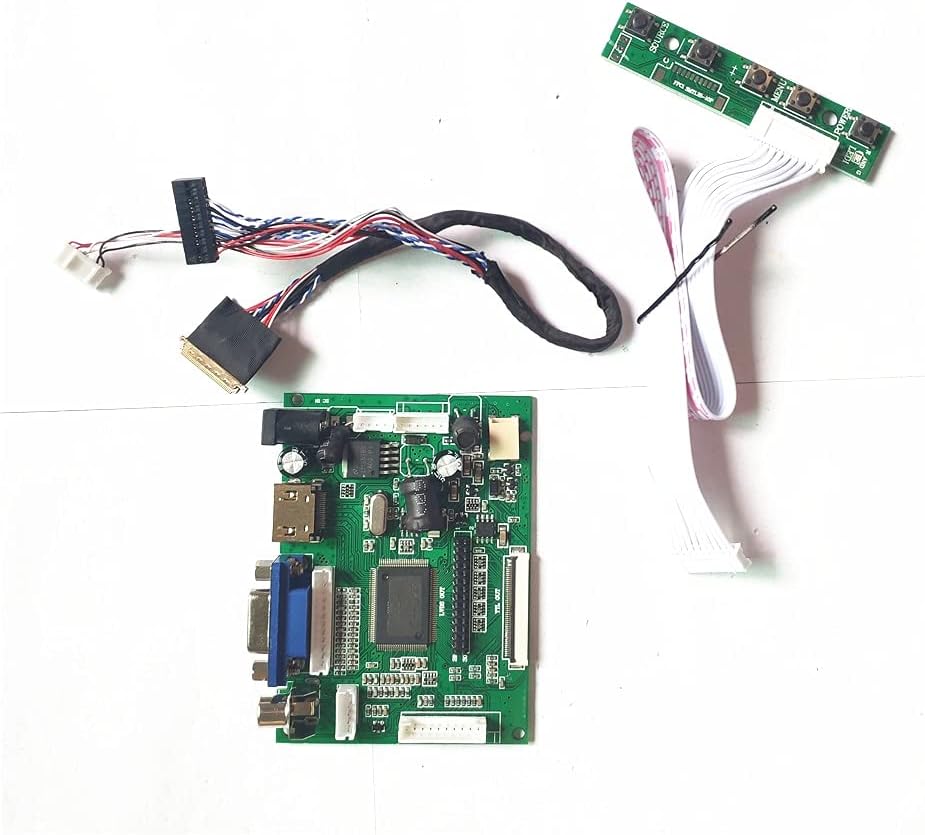

Kit Includes

• 1 x Controller Driver Board
• 1 x EDP Signal Cable
• 1 x Keyboard with Cable
