N/C Controller Board for B140XTN03 LCD 1366x768 HDMI VGA 2AV Keypad Cable

Controller Board Kit for B140XTN03.x LCD Screens

This controller board is designed to drive EDP interface LED panels with a resolution of 1366 x 768 and a refresh rate of 60Hz. It offers versatile input options for video and audio.

Key Features

• Compatibility: Suitable for B140XTN03.0/1/5/6/7 WLED LVDS LCD screens.
• Resolution: Supports 1366 x 768 resolution.
• Video Inputs: 2 x Mini HDMI ports.
• Additional Video Input: 1 x VGA port.
• AV Inputs: 2 x AV inputs.
• Audio Output: Supports small speakers and earphones.
• Power Options:
  • DC 12V 2A (DC Port: 1.35MM inner, 3.5MM outer).
  • Micro USB 5V 2A.
• Interface: EDP signal interface.
• Languages: Chinese and English support.

Specifications

• Board Size: 82mm(L) x 60mm(W) x 10mm(H).

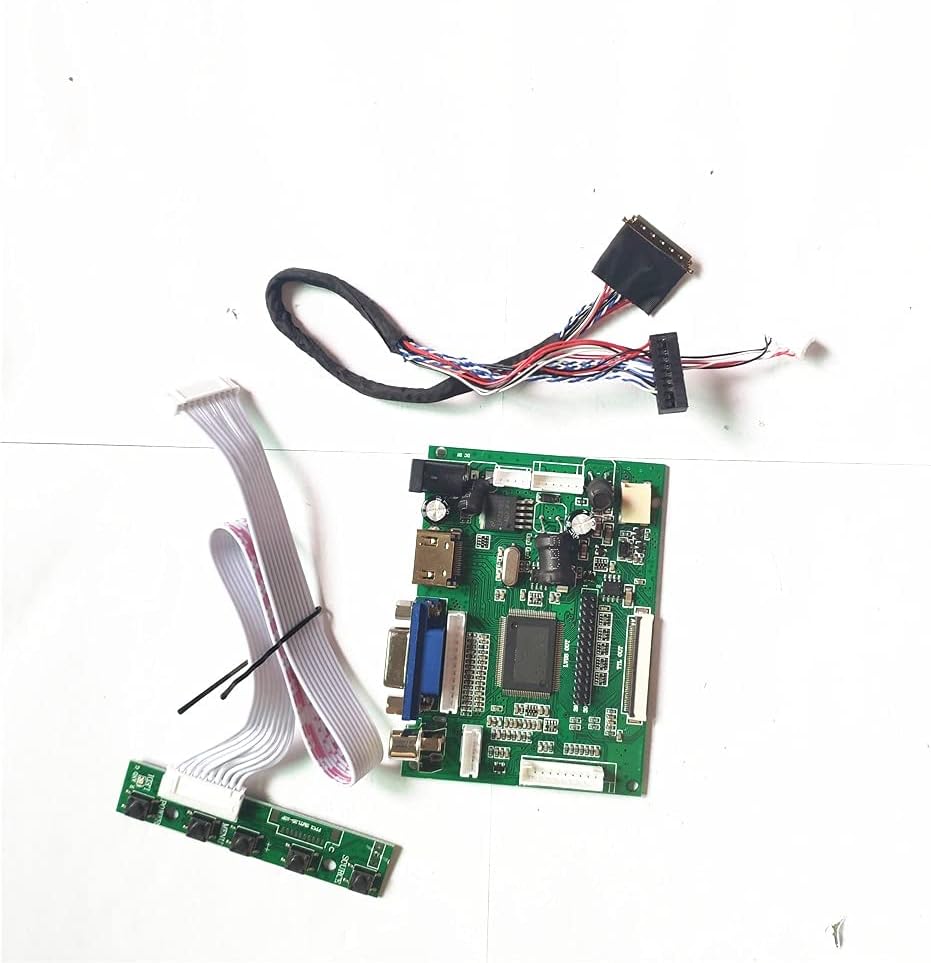

Kit Includes

• 1 x Controller Driver Board
• 1 x EDP Signal Cable
• 1 x Keyboard with Cable
