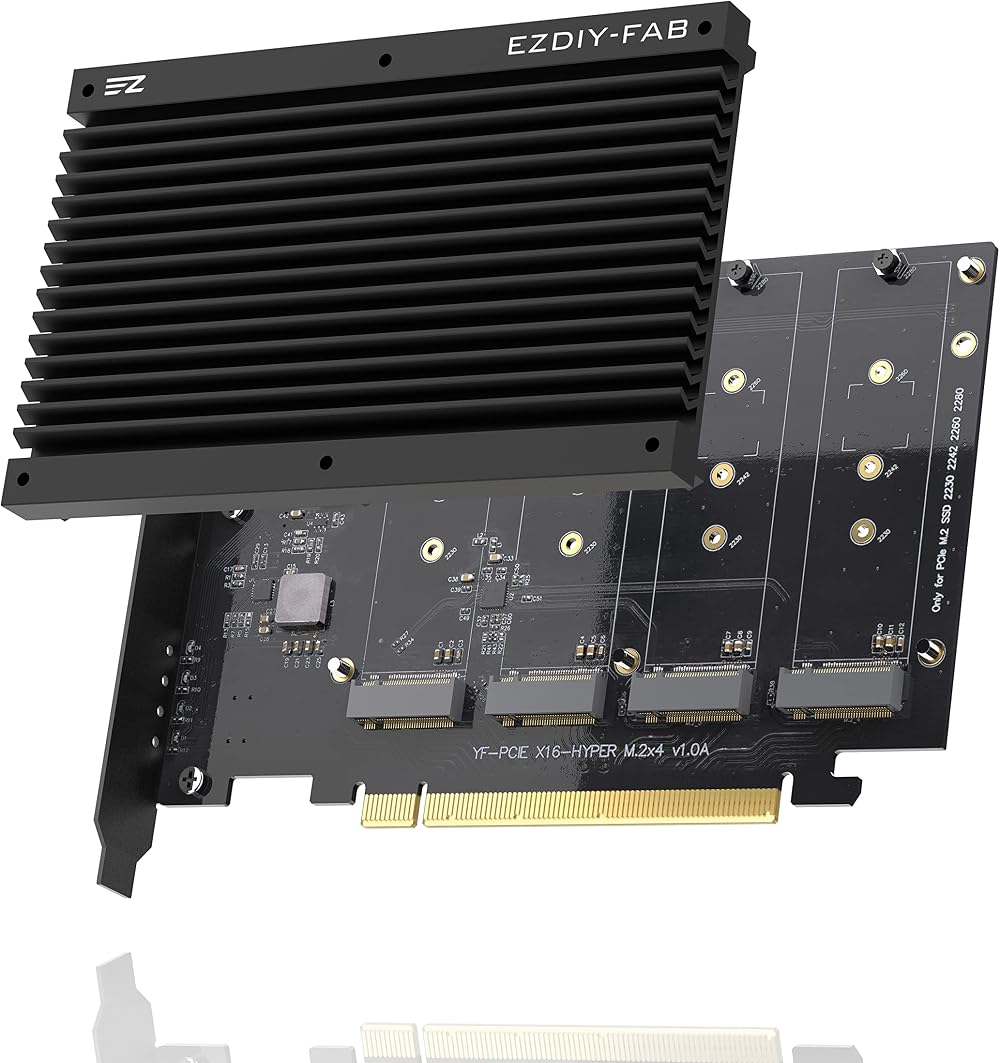

EZDIY-FAB Quad M.2 PCIe 4.0/3.0 Expansion Card w/ Heatsink RAID-on-CPU VROC

Key Features

The EZDIY-FAB Quad M.2 PCIe Expansion Card allows you to install and utilize four NVMe M.2 SSDs simultaneously. This card is designed for high-performance storage configurations, supporting PCIe 4.0 and 3.0 speeds. It features a substantial heatsink to ensure optimal thermal management for your M.2 SSDs, even under heavy workloads, maintaining stable operation.

Important Considerations

• Motherboard Requirement: Your motherboard must support PCIe bifurcation and be configurable to X4X4X4X4 or 4X4 mode for the card to function correctly with four M.2 SSDs.
• SSD Compatibility: Supports NVMe M.2 SSDs in sizes including 2230, 2242, 2260, and 2280.
• RAID Support: This card itself does not include RAID functionality. It enables your motherboard to recognize four M.2 SSDs. For hardware or software RAID setup, consult your motherboard's configuration and setup guide.
• Installation Recommendation: For optimal performance and stability, it is recommended to use NVMe M.2 SSDs of the same model when populating all four slots.

Specifications

• Brand: EZDIY-FAB
• Interface: PCIe 4.0/3.0 X16
• Number of M.2 Slots: 4
• M.2 SSD Support: NVMe Protocol
• M.2 Drive Sizes: 2230, 2242, 2260, 2280
• Cooling: Integrated Large Heatsink
• Special Features: Supports RAID-on-CPU (VROC) on Intel platforms and PCIe 4.0 RAID on AMD platforms (Requires motherboard support for bifurcation).
