BELEY Digital Dual Port Differential Pressure Gauge Manometer LCD Temp Reader

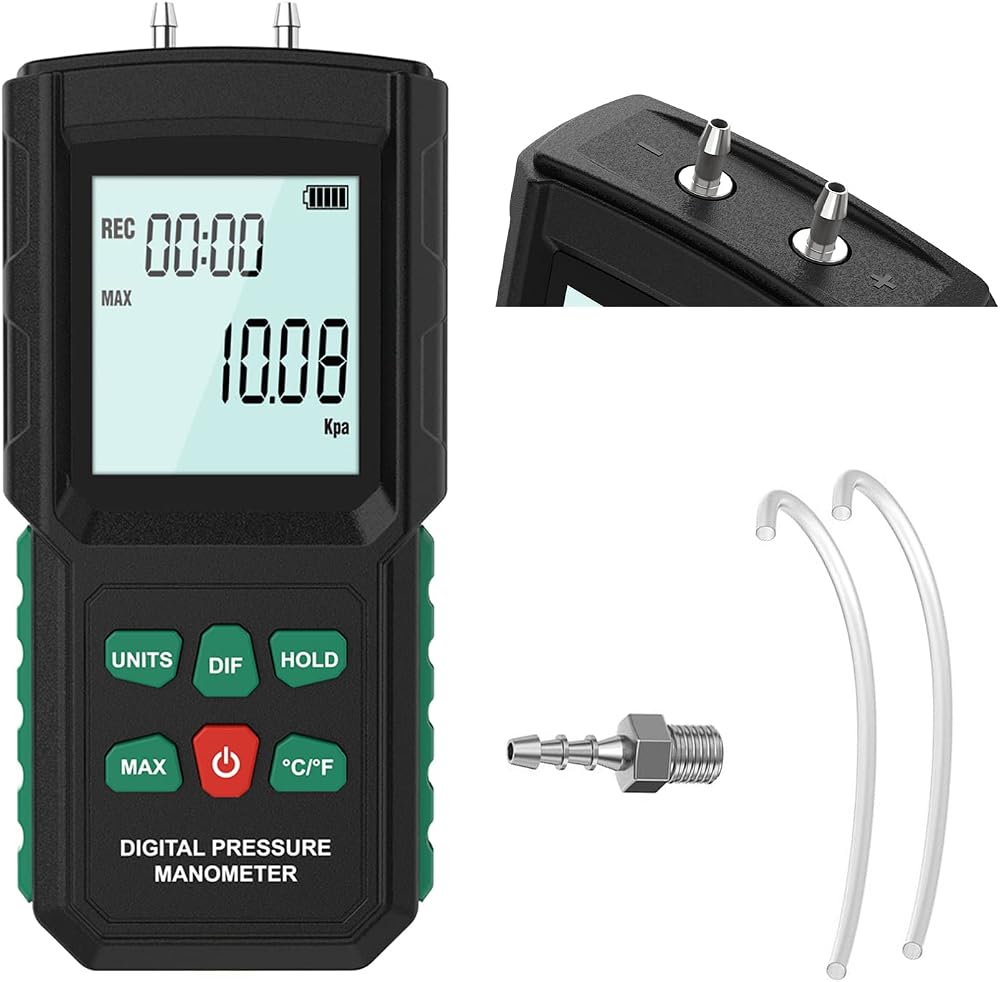

BELEY Dual Port Digital Pressure Manometer

Measure pressure with precision using the BELEY Dual Port Digital Pressure Manometer. This device features high accuracy, multiple selectable units, and an easy-to-read LCD screen. It is ideal for various industrial and HVAC applications.

Key Features

• Dual Port Measurement: Simultaneously detects pressure differences between two ports (P1-P2).
• High Precision: Equipped with imported pressure sensors, high precision ADC, and low power consumption MCU for accurate and stable readings.
• Measurement Range: ±20.68 KPa / ±2.999 PSi.
• Accuracy: ±0.3%FSO (at 25℃/77F).
• Measurement Rate: 0.5 seconds.
• Barb Metal Connector Thread Size: 1/8 inch.
• Data Hold: Lock and hold current data. Long press to clear drift data.
• Data Storage: Store up to 100 groups of measured pressure values.
• 13 Pressure Units: Selectable units include Psi, kg/cm², oz/in², bar, mbar, Pa, inHg, mmHg, inH2O, ftH2O, cmH2O, and kPa.
• Large Backlight LCD: Easy viewing in low light conditions, displays min/max values.
• Indoor Temperature Measurement: Built-in sensor for ambient temperature.
• Automatic Shut Down: 15 minutes.
• Power Supply: 9V Battery (Not Included).

Wide Application

The BELEY Gas Pressure Tester is suitable for natural gas pipelines, air conditioning and refrigeration ventilation systems, gas and liquid industrial equipment pressure detection, and liquid level detection.
