DIGITEN G1.5" Water Flow Hall Sensor Switch Meter 10-150L/min Hall Effect

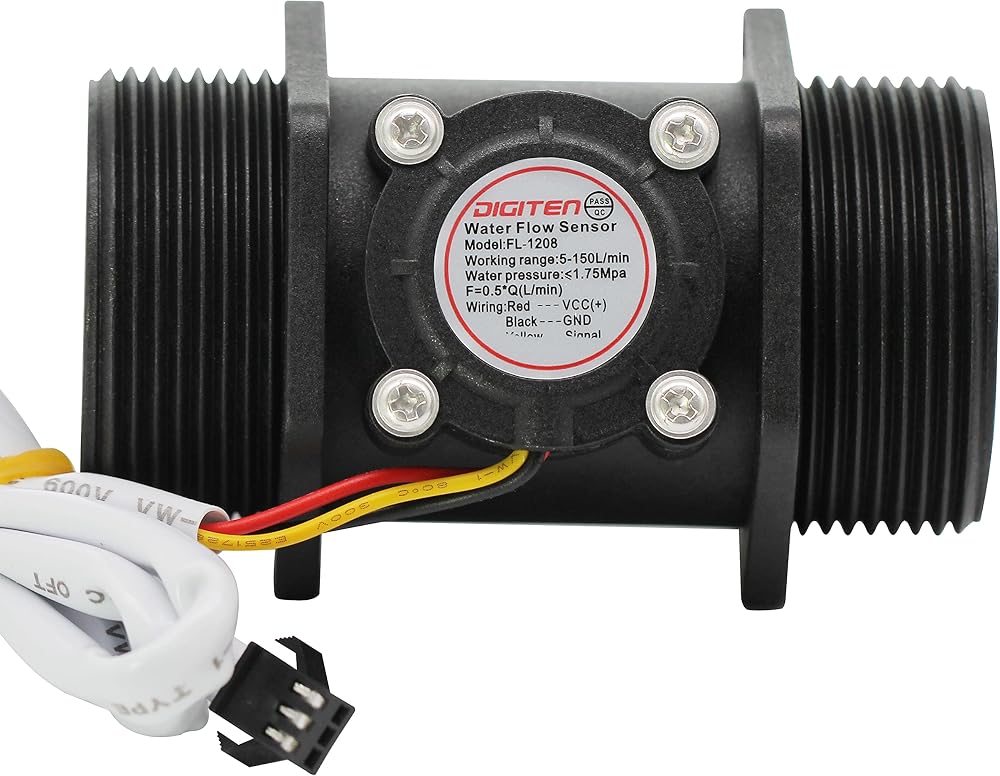

DIGITEN G1.5" Water Flow Hall Sensor Switch Meter

This DIGITEN G1.5" water flow sensor is designed for reliable flow measurement and control. It features waterproof, heat resistance, pressure resistance, and cold resistance for durability in various environments. Easy to install and operate.

Key Features

• Waterproof
• Heat resistance
• Pressure resistance
• Cold resistance
• Easy installation
• Square wave output pulse signal

Specifications

• Brand: DIGITEN
• Model: G1-1/2 (1.5 inch)
• Flow Range: 10-150 L/min
• Sensor Type: Hall effect
• Working Voltage Range: DC 5-18 V
• Maximum Current: 15 mA (DC 5V)
• Load Capacity: Approximately 10 mA (DC 5V)
• Operating Temperature: 0-80°C
• Operating Humidity: 35%-90% RH
• Allowable Compression: Water pressure 1.75 Mpa and below
• Insulation Resistance: >100M OHM
• Storage Temperature: -25-80°C
• Storage Humidity: 25%-95% RH
• Output Waveform: Square wave, output pulse signal
• Cable Length: 480mm
• Maximum Size: 92mm x 68mm

Packaging Includes

• 1 x G1.5" Flowmeter
