VBESTLIFE SW-512C Digital Manometer Portable Large Screen HVAC Pressure Gauge

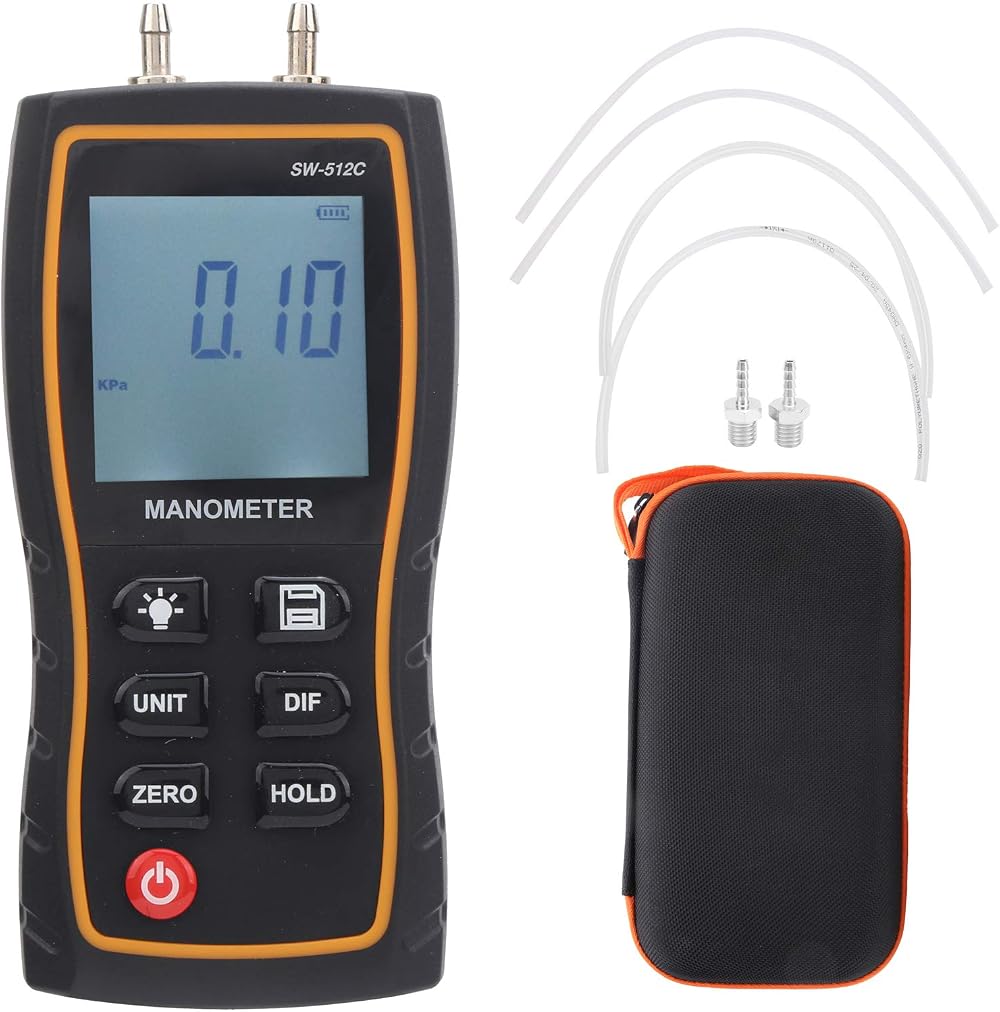

VBESTLIFE SW-512C Digital Manometer

The VBESTLIFE SW-512C is a portable digital manometer designed for collecting operational data and settings, commonly used with HVAC equipment. It features a large screen for clear display and multiple measurement units.

Key Features

• Model: SW-512C
• Material: ABS
• Large Screen Display: Easy to read measurements.
• Portable Design: Convenient for on-site use.
• Versatile Measurement Units: Supports KPa, mmHg, InHg, Psi, Mbar, Bar, Ozin², Kgcm², InH?O, FtH?O, CmH?O.
• Data Collection: Ideal for monitoring operational data and settings.
• Over-Range Prompt: Indicates pressure limits with Err1 or Err2.
• Includes Accessories: Comes with hoses, quick connectors, a bag, and an instruction manual.

Specifications

• Measuring Range: ±103.42KPa
• Accuracy: ±1% FS (Maximum error 1.04KPa)
• Maximum Pressure Limit: 206.7KPa
• Repeatability: ±0.25%FS
• Response Time: 0.5S
• Pressure Connection: 1/8in (3.18mm) quick connector
• Working Temperature and Humidity: 0℃-40℃, 10%-80%RH
• Storage Temperature and Humidity: -10℃-60℃, 10%-90%RH
• Power Supply: 3 x 1.5V AAA (not included)

How to Use

1. Install 3 x 1.5V AAA batteries (not included).
2. Press the power button.
3. Connect the hose to the adapter and port, then connect the adapter to the area where air pressure needs testing.
4. Press the UNIT button for unit conversion, DLF difference, or recording mode as per your requirements.

Package List

• 1 x Digital Manometer (Battery Not Included)
• 4 x Plastic Hose
• 2 x Quick Connector
• 1 x Bag
• 1 x Instruction Manual

Note: Item color displayed in photos may be showing slightly different from the real object due to monitor calibration differences. Please take the real one as standard.
