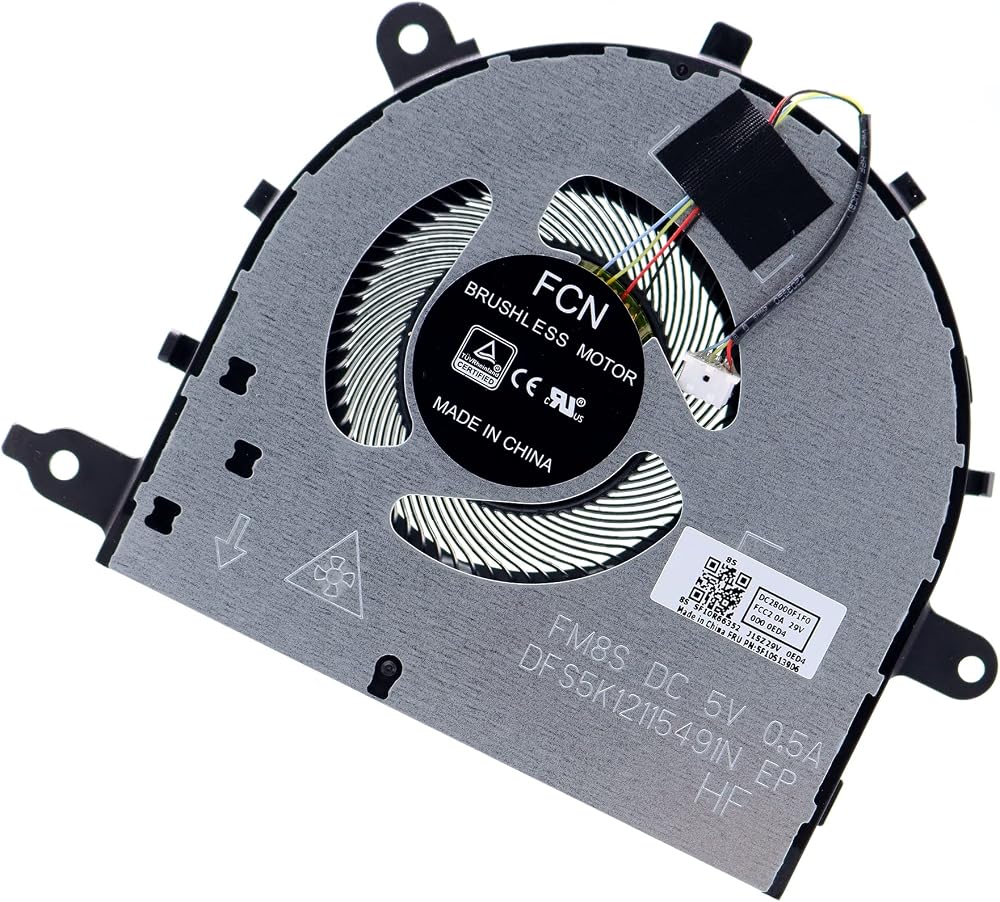

Lenovo Ideapad 5-15 CPU Cooling Fan DC28000F1F0 Replacement

This is a replacement CPU Cooling Fan for the Lenovo Ideapad 5-15 series laptops, specifically designed for models with a U-type CPU processor and integrated graphics. A replacement may be needed if your current fan is running loud or not functioning correctly.

Key Features

• Integrated Flex Cable: Connects directly to the mainboard.
• 4-Pin Connector: Plug and play replacement module for easy installation.
• No Soldering Required: Attaches to your existing heatsink.

Specifications

• Direct Current: DC 5V / 0.5A, 2.25W
• Color: Black
• Connection: 4-pin, 4-wires, Plug-in
• Wire Length: 4.50 cm (1.77-inch)

Compatible Part Numbers

• Manufacturer Part Numbers: DC28000F1F0, DFS5K12115491N FM8S, SF10R66352
• FRU (Field Replaceable Unit): 5F10S13906, 5H40S20000, 5H40S20160

Compatible Lenovo Models

Please check your laptop's model number and existing fan's part number to ensure compatibility:

• Ideapad 5-15IIL series (81YK): 5-15IIL05
• Ideapad 5-15ARE series (81YQ): 5-15ARE05
• Ideapad 5-15ITL series (82FG): 5-15ITL05
• Ideapad 5-15ALC series (82LN): 5-15ALC05

What's in the Box

• 1x CPU Cooling Fan (Thermal paste not included)
