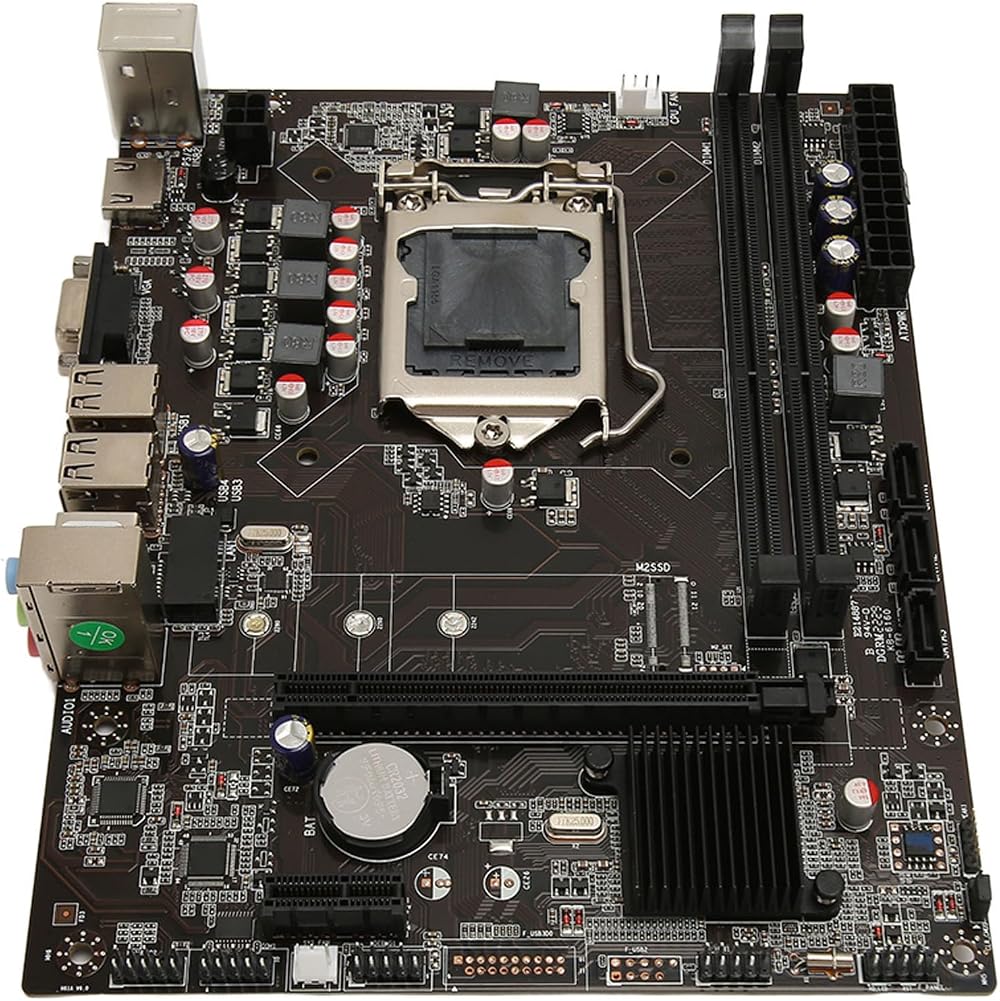

DAUZ H61A DDR3 Motherboard LGA1155 ATX Dual Channel 16GB HD HDMI VGA 10/100M

DAUZ H61A Motherboard - Reliable Performance for Your PC

Upgrade your desktop with the DAUZ H61A ATX Motherboard. Designed for LGA 1155 processors, this motherboard offers robust features for gaming and general PC use, including dual-channel DDR3 memory support and high-definition video output.

Key Features

• CPU Socket: LGA 1155, compatible with Intel Core i7/i5/i3 processors.
• Memory Support: Dual Channel DDR3 slots supporting up to 16GB capacity.
• Video Output: Integrated VGA and HD Multimedia Interface for high-definition visuals.
• Networking: Onboard 10/100Mbit Network Card for reliable connectivity.
• Power Supply: Multi-phase power supply for stable and precise power delivery, enhancing CPU performance and durability.
• Construction: High-quality PCB material with a full solid-state panel for long-term stability and resistance to deformation.
• Expansion: PCIE 16Xx1 slot for graphics cards and PCIE 1X expansion slot.

Specifications

• Item Type: H61A Motherboard
• Material: PCB
• Model: H61A
• Motherboard Architecture: ATX
• Motherboard Size: Approx. 215 x 170mm / 8.3 x 6.7in
• CPU Socket Type: LGA 1155 (Intel Core i7 i5 i3 compatible)
• Network Card: 10/100Mbit
• Graphics Card Slot: PCIE 16Xx1
• Supported Memory Type: DDR3x2
• Maximum Memory Capacity: 16GB
• Interface: SATA2.0x3
• USB Port: USB2.0x4, Front USB2.0pinx1
• Sound Card: HD Sound Card, Support 6 Channels
• Power Supply Interface: 24pinx1, 4pinx1
• Expansion Interface: VGA, HD Multimedia Interface, PCIE 1X Expansion Slotx1
• Battery Type: CR2032 Button Cell (Built In)
• Battery Capacity: 240mAh

Package Includes

• 1 x H61A Motherboard (with Inbuilt Battery)
• 1 x Baffle
• 1 x Cable
• 1 x User Manual

Simply install the motherboard to begin using its features.
