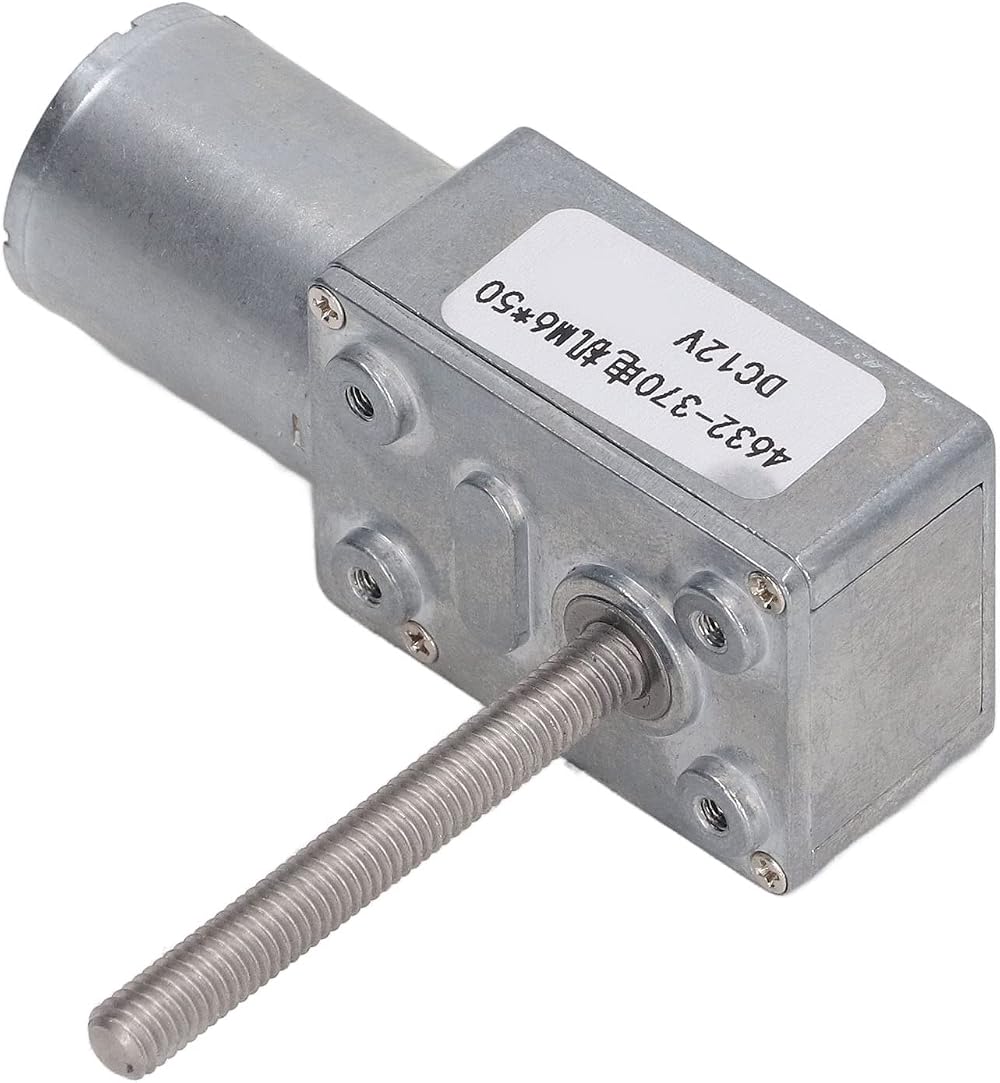

AMONIDA DC Gear Motor M6 Self-Locking Worm Gearbox 12V 1RPM for Printers

Product Overview

This AMONIDA DC Gear Motor is a miniature worm motor designed for applications requiring high torque and self-locking capabilities. It features a durable aluminum alloy casing and a brass coil for enhanced conductivity and heat resistance. The motor's self-locking function ensures the output shaft remains fixed when unpowered, making it ideal for precise positioning tasks.

Key Features

• Larger Torsion & Brass Coil: Utilizes a brass coil for improved conductivity and reduced heat. Internal metal worm gears provide greater torsion.
• Shaft Rotation Control: The DC gear motor allows for changes in shaft rotation direction by simply reversing the wiring.
• Self-Locking Function: The output shaft is held stationary when the motor is not powered, offering a stable self-locking mechanism.
• Wear Resistance & Low Noise: Features gears with good wear resistance, resulting in low power consumption, slow temperature rise, and quiet operation.
• Durable Aluminum Alloy Case: Constructed with a corrosion-resistant, strong, and durable aluminum alloy shell.
• Wide Application: Suitable for printers, copiers, intelligent robots, electric sanitary ceramics, and automation in office, home, or production environments.

Specifications

• Item Type: Worm Gear Motor
• Material: Aluminum Alloy, Brass
• Rated Voltage: DC 12V
• No-Load Current: ≤60 mA
• Rated Current: ≤0.60 A
• Blocking Current: 1.5 A
• Head Rotation Shaft Thread: M6 x 50 mm
• Speed: 1 RPM

Package Includes

• 1 x DC Gear Motor
