Vikye DC-DC Buck Module 6-32V to 5V QC 3.0 USB Fast Charge Power Converter

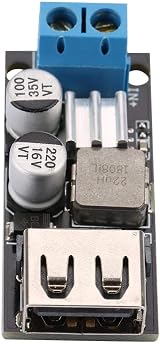

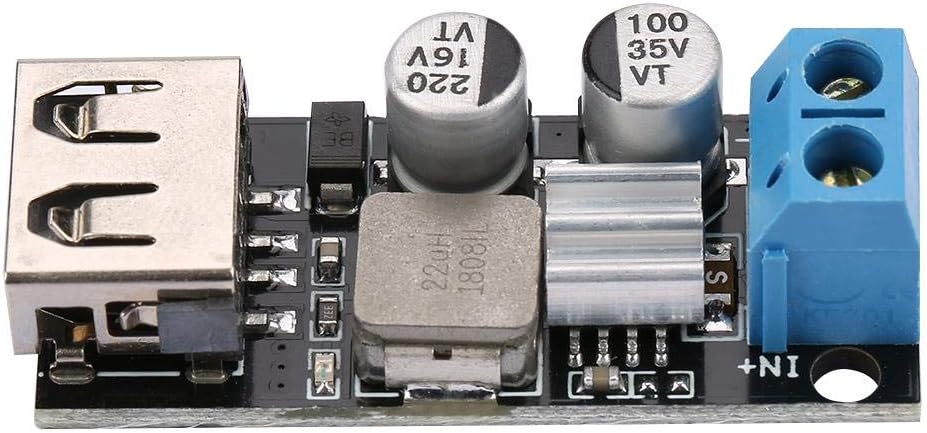

Vikye DC-DC Voltage Buck Module

This versatile DC-DC power converter module from Vikye offers a long service life and stable power output. It efficiently converts a wide input voltage range of 6-32VDC to a regulated 5VDC output, with automatic adjustment to fast charging voltages (3V-12V) when triggered by compatible devices.

Key Features

• Input Voltage: 6-32VDC
• Output Voltage: Default 5VDC, adjusts to 3V-12V for fast charging
• Output Power: Max. 24W (supports 5V@3.4A, 9V@2.5A, 12V@2A)
• Conversion Efficiency: 90%~97%
• USB Output: Supports QC 3.0 fast charging for phones and other devices
• Easy Wiring: Features a convenient terminal block for connection
• Protection Features: Includes input under-voltage, input over-current, output over-current and short circuit protection, and over-temperature protection.

Specifications

• Brand: Vikye
• Input Voltage: 6-32VDC
• Output Voltage: Default 5VDC, auto-adjusts 3V-12V
• Maximum Output Power: 24W
• Fast Charge Support: QC 3.0 (5V@3.4A, 9V@2.5A, 12V@2A)
• Conversion Efficiency: 90% to 97%
• Reverse Input Protection: No
• Input Under-voltage Protection: Yes
• Input Over Current Protection: Yes
• Output Over Current & Short Circuit Protection: Yes
• Over Temperature Protection: Yes
• Weight: Approximately 10g / 0.4oz

Package Includes

• 1 * DC-DC Voltage Buck Module
