Giosolar 600W Solar Wind Kit 12V/24V: 400W Turbine + 2x 100W Panels + Controller

Giosolar 600W Off-Grid Solar and Wind Turbine Kit

This comprehensive kit from Giosolar provides a reliable solution for your home, RV, or off-grid power needs, combining the strengths of solar and wind energy. Please specify if you require a 12V or 24V system.

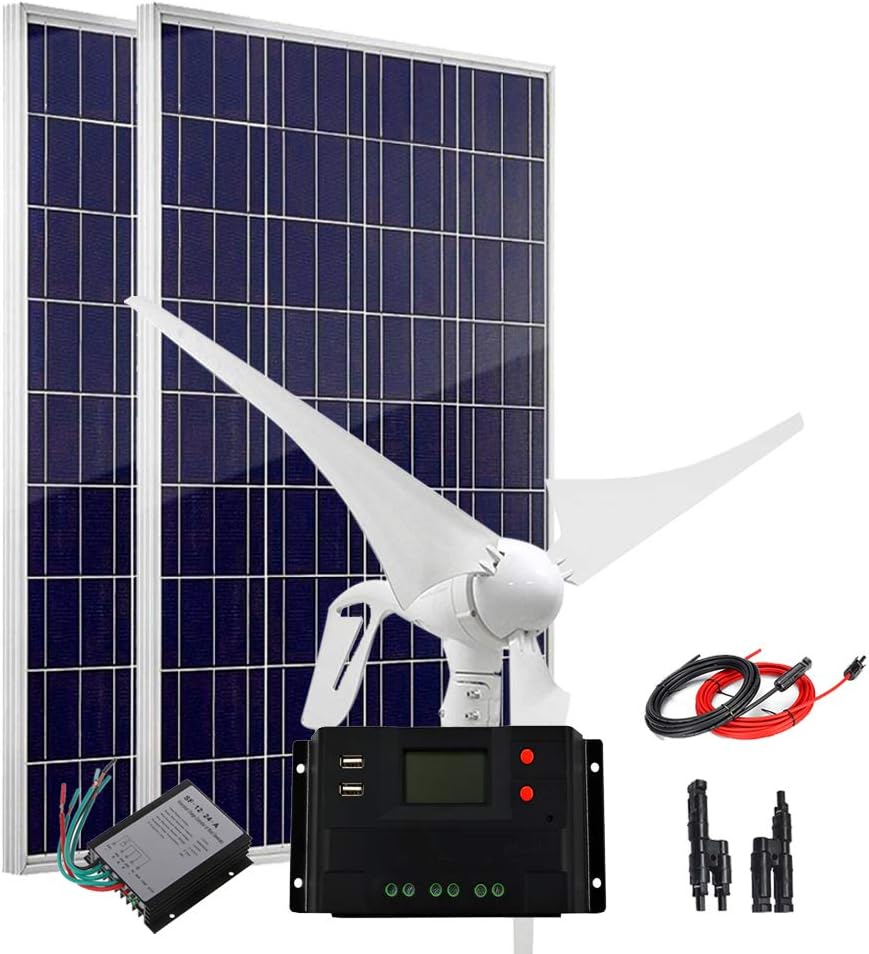

Kit Components:

• 2 x 100W Polycrystalline Solar Panels with 90mm special solar cable and waterproof connectors.
• 1 x 400W Wind Turbine Generator.
• 1 x 12V/24V 20A PWM Solar Charge Controller.
• 1 x 12V/24V Wind Charge Controller.
• 1 x 5M Solar Extension Cables (Red approx. 2.5M + Black approx. 2.5M) with Male & Female connectors.
• 1 Set of Y Branch Connectors (quantity varies based on 12V/24V system selection).

Important Notes:

• The kit will be shipped in separate packages due to size and weight restrictions.
• For proper setup, connect the battery to the controller first, then connect the solar panels and wind turbine to the controller.

Solar Panel Specifications:

• Maximum Power: 100W
• Optimum Operating Voltage (Vmp): 18 V
• Open-Circuit Voltage (Voc): 21.6 V
• Optimum Operating Current (Imp): 5.55 A
• Short-Circuit Current (Isc): 6.11A
• Dimensions: 1025 x 671 x 30mm / 40.35 x 26.42 x 1.18 Inches
• Weight: 7.5KG (16.53 lbs)
• Includes 90mm special cable with connectors.

400W Wind Turbine Specifications:

• Nominal Voltage: DC 12-24V
• Cut-in Wind Speed: 2.5 m/s
• Rated Wind Speed: 10.5 m/s
• Maximum Wind Speed: 35 m/s
• Rotor Diameter: 1.2M
• Suggested Tower Diameter: More than 48mm
• Suggested Tower Altitude: 4.5M - 10M
• Net Weight: 8kg (17.64 lbs)

Warranty Information:

• Solar Panel Power Output Warranty: 25 year transferable (5 year for 95% efficiency, 10 year for 90% efficiency, 25 year for 80% efficiency).
• Material and Workmanship Warranty: 5 year.
