fasient 24/20-pin ATX Power Supply Board Module Adapter 24 Amp Screw Terminal

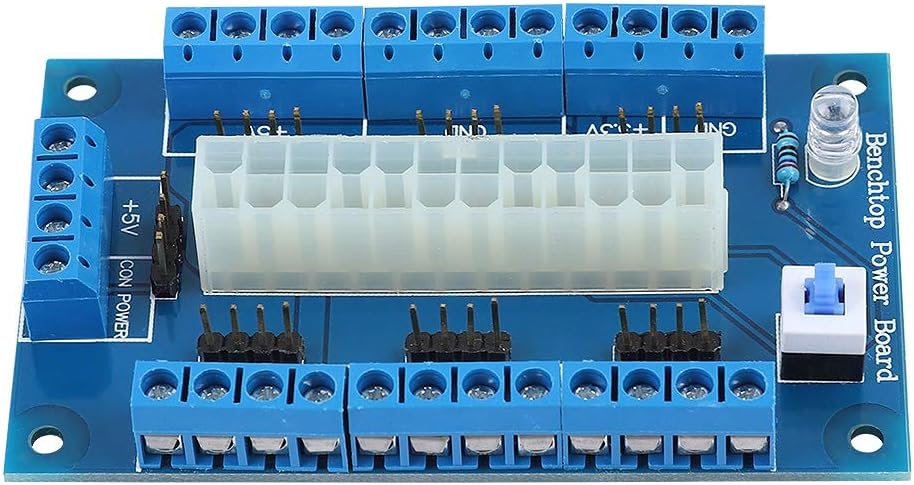

fasient ATX Power Supply Module Breakout Board

This fasient 24/20-pin ATX Power Supply Module Adapter provides a convenient benchtop solution for accessing computer power supply outputs. It features screw terminal blocks for easy and secure connections.

Key Features

• Type: ATX Power Supply Module Adapter
• Brand: fasient
• Connectors: 24/20-pin
• Terminal Blocks: Screw terminal type for secure connections
• On/Off Button: Integrated or supports external buttons for remote power control
• Output Terminals:
  • 6 x +5V / 16A
  • 10 x GND / 16A
  • 1 x -5V / 16A (Note: -5V may not be present on all PC power supplies)
  • 1 x -12V / 16A
  • 4 x +12V / 16A
  • 3 x +3.3V / 16A

Specifications

• Material: Circuit Board
• Weight: Approximately 50g
• Size: Approximately 52 x 87mm / 2 x 3.4 inches

Package Includes

• 1 x 24/20Pin ATX Power Supply Module Adapter

Notes

• The 'power connector' allows for remote On/Off button functionality by connecting two external buttons, enabling control even when the adapter is panel-mounted.
• Please allow for slight measurement errors due to manual measurement.
