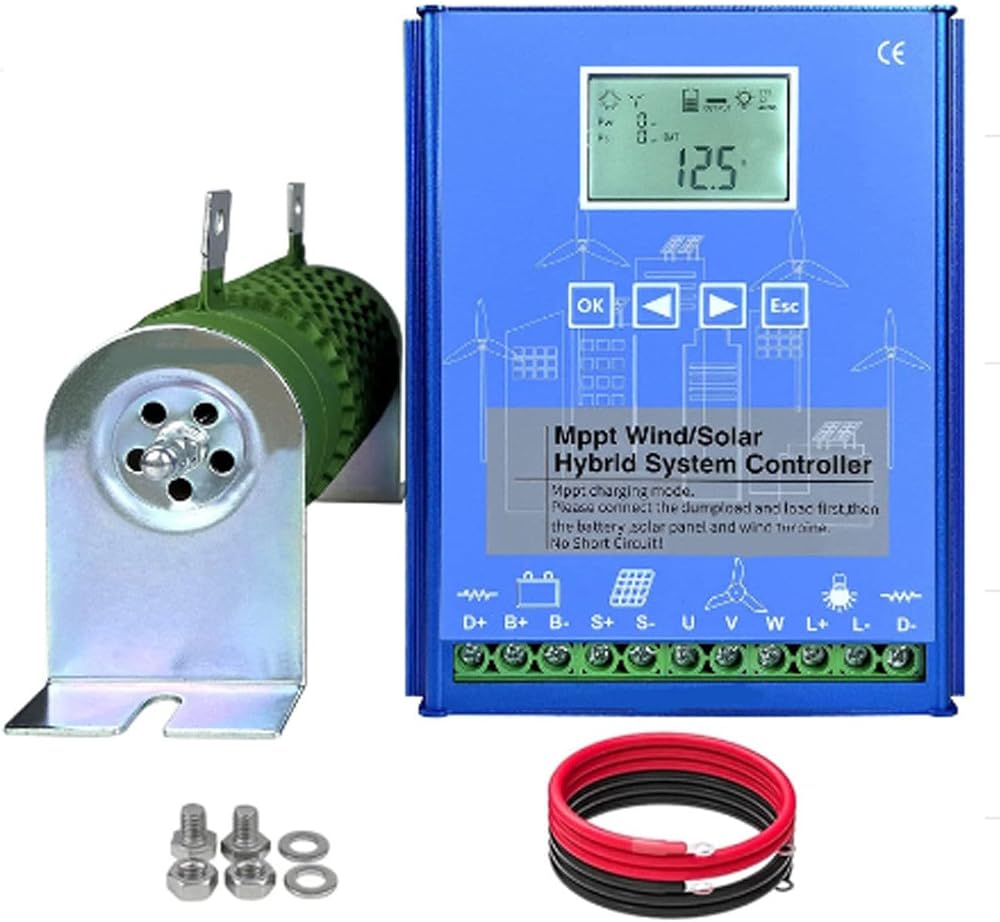

JINGEDD 8000W Wind Solar Hybrid MPPT Charge Controller 12V 24V 48V LCD

Overview

This JINGEDD Wind-Solar Hybrid MPPT Charge Controller is designed for small off-grid systems, enabling safe and efficient charging of batteries from both wind turbines and solar panels. With simple adjustments, it is also suitable for home use.

Functions and Features

• Wind Turbine MPPT Boost Charging: Maximizes energy harvest from wind power.
• Wind Energy PWM Unloading: Intelligent diversion for excess wind energy.
• Solar Charging Separation: Efficient and safe solar panel charging.
• Dual Power Supply: Supports battery and solar energy inputs.
• LCD Display: Shows wind, day, load voltage, current, and other parameters. User-configurable settings available.
• DC Output: Features three distinct output modes.
• Durable Construction: Made from high-quality aviation aluminum with an anodized, impact-resistant surface.

Specifications

• System Rated Voltage: 12V / 24V / 48V
• No-Load Current (DC): Less than or equal to 0.05A
• Controller Power Supply Mode: Battery or Photovoltaic Panel
• Control Method: Fan MPPT boost, PWM unloading, PWM overcurrent
• Load Working Modes: Pure light control, normally open, light control + time control (four periods + morning light)
• Display Mode: LCD screen
• Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
• Heat Dissipation: Aluminum profile heat dissipation and self-cooling
• Operating Temperature & Humidity: -20 to +55℃ / 35 to 85% RH (non-condensing)

Package Contents

• 1x Wind Solar Hybrid Charge Controller

Important Notes

• Ensure correct connection sequence.
• Connect wires between the battery and the controller first.
