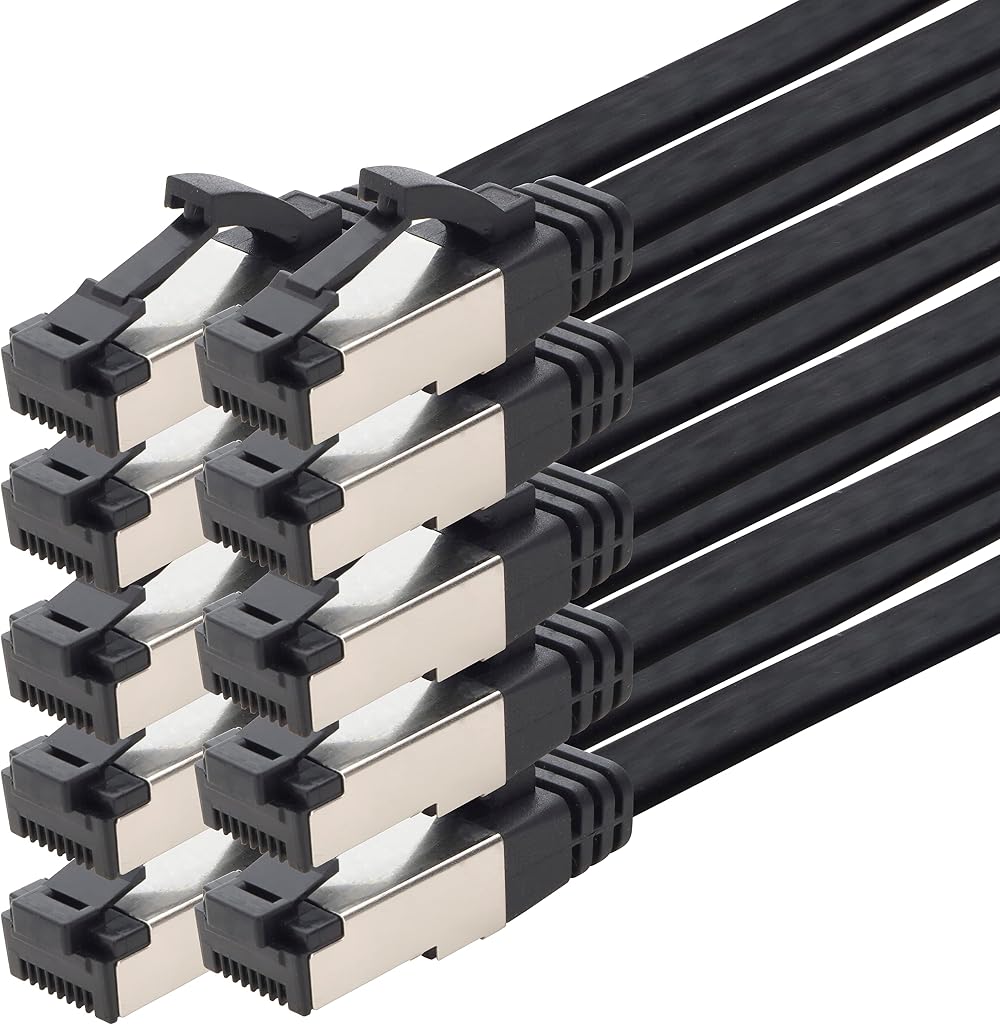

1aTTack.de Cat 8 Flat Black 0.5m Ethernet LAN Cable 40Gbps 2000MHz RJ45 10 Pack

This 1aTTack.de Cat 8 flat patch cable is designed for high-speed network connections, supporting Ethernet networks up to 40 Gigabits per second. It offers a transmission frequency of up to 2000 MHz, making it ideal for demanding network environments.

Key Features

• Cable Type: Cat 8.1 U/FTP PIMF Patch Cable
• Speed: Up to 40 Gbps (40000 Megabit/s)
• Bandwidth: Up to 2000 MHz
• Compatibility: Suitable for 10/100/1000/10000/25000/40000 MBit/s Ethernet networks
• Connectors: 2x RJ45 Cat 8 plugs with 50µ gold-plated contact surfaces
• Shielding: U/FTP (PiMF) - Pairs in metal foil + overall braid shielding
• Cable Design: Flat cable with slimline kink protection sleeves
• Conductor Material: CU (Copper), AWG 24
• Outer Sheath: LSZH TPE (Halogen-free) compliant
• Length: 0.5 meters
• Quantity: 10 pieces
• Additional Features: Latch protection on both sides, Pair sequence according to EIA/TIA 568B

Technical Specifications

• Connector Type 1: RJ45 Male (8P8C)
• Connector Type 2: RJ45 Male (8P8C)
• Shielding Class: U/FTP (PiMF)
• Specification: CAT 8.1 according to IEC 46C/976/NP
• Inner Conductor Material: CU (Copper)
• AWG: 24
• Number of Shields: 2
• Shielding Type 1: Foil (aluminium) PiMF
• Cable Sheath Diameter: 8.2 mm x 2.5 mm
• Kink Protection: On both sides
• LSZH Compliant: Yes
• Cable Type: Flat Cable
• Max Bandwidth: 2000 MHz, 25GBase-T / 40GBase-T
• Outer Sheath Material: LSZH TPE (Halogen-free)
